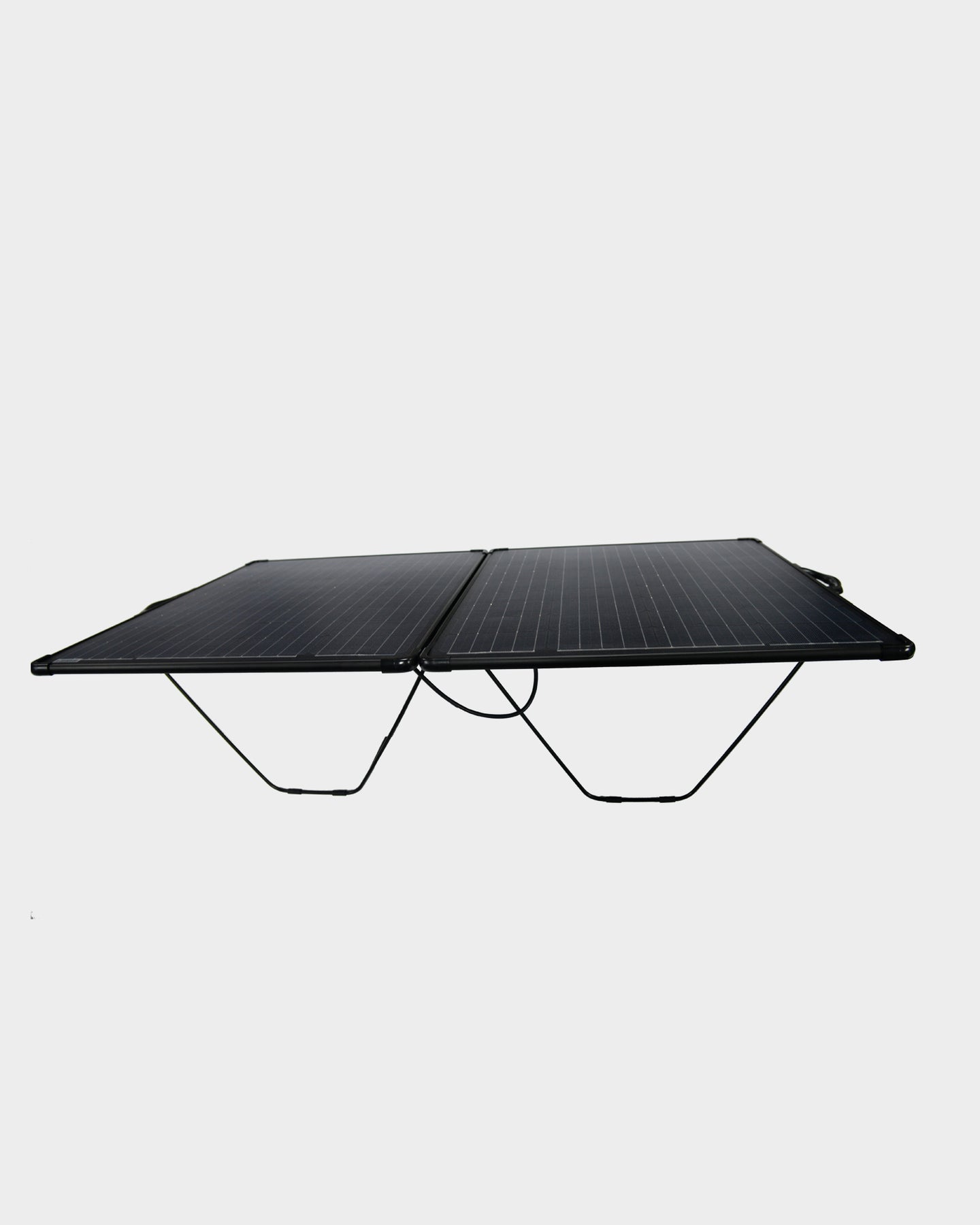

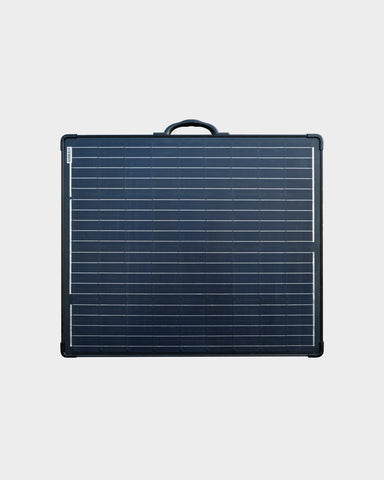

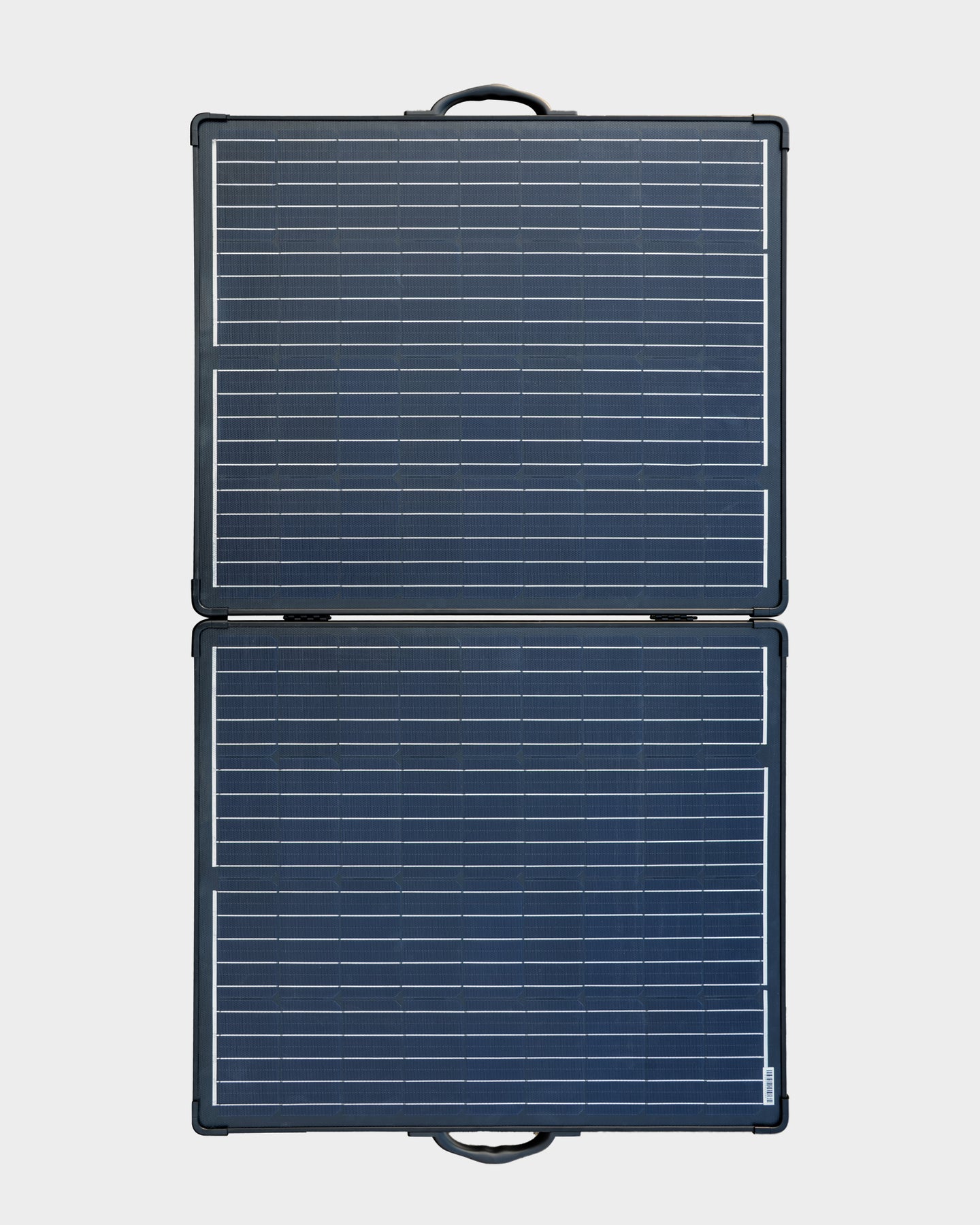

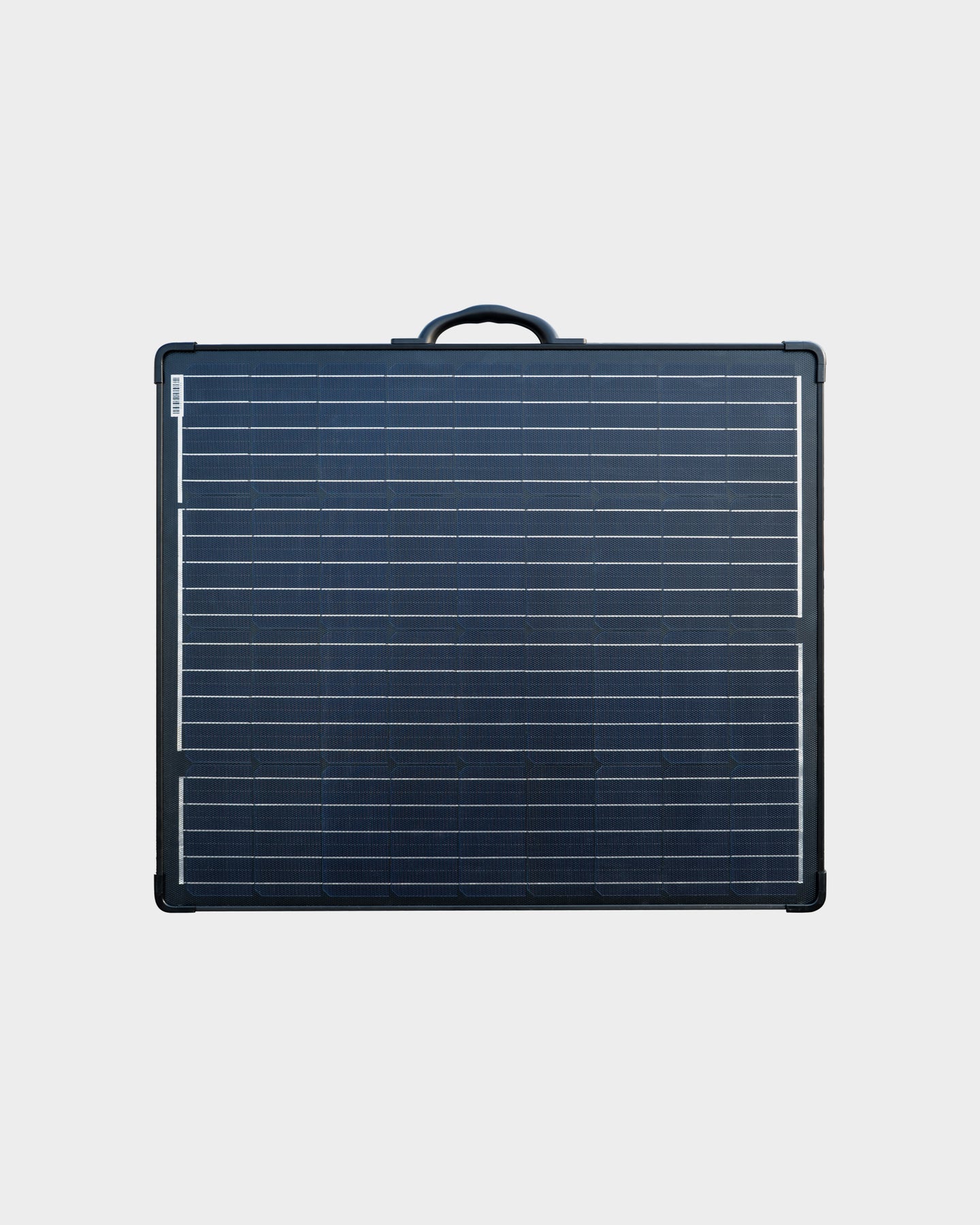

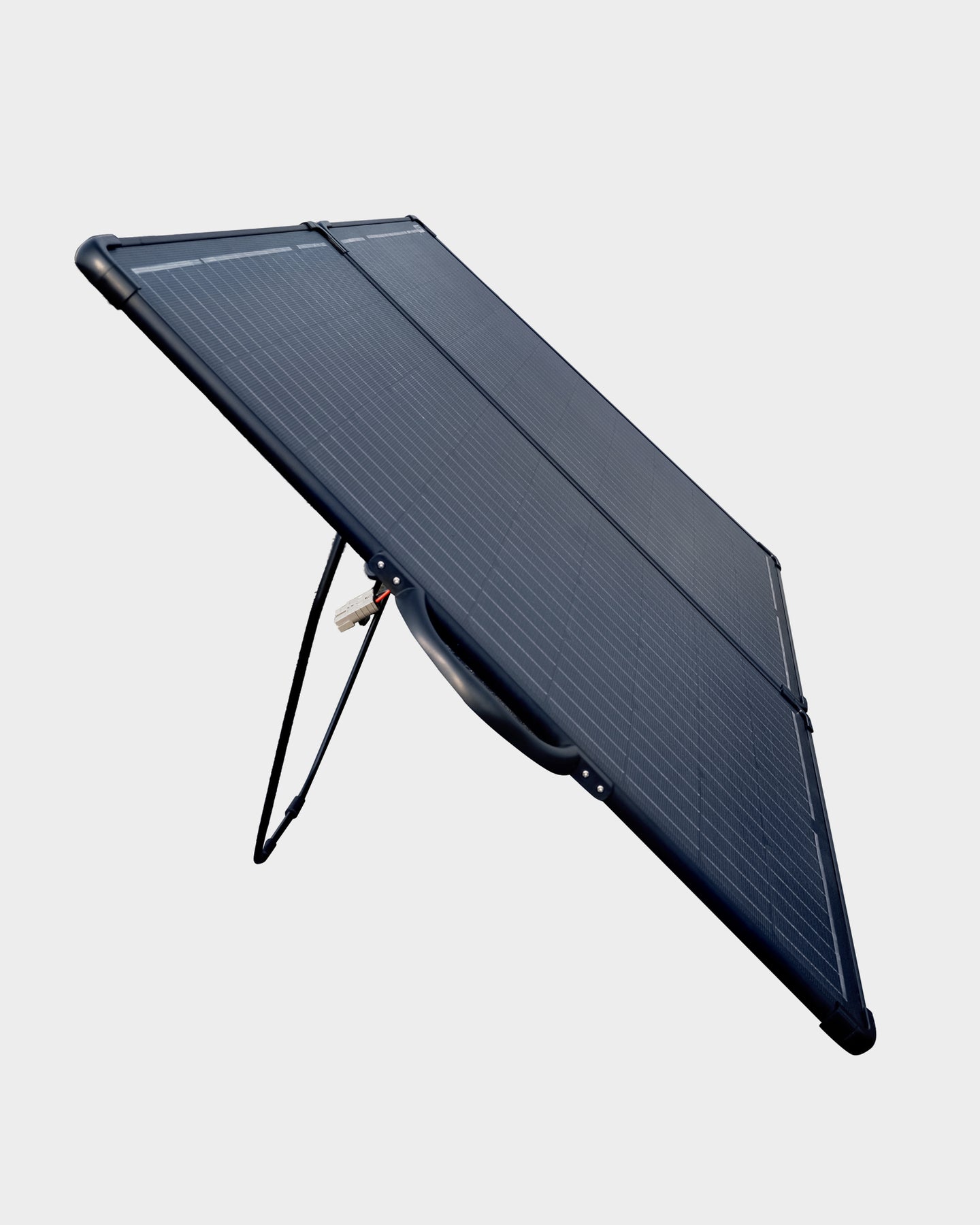

The CPP 200w folding panel offers class leading value for a highly efficient and durable EFTE folding solar panel.

With an efficiency rating of 21.8% thanks to A grade TW solar cells this is the ideal panel to charge your portable power solutions.

Can be configured in series or parallel dependent on the customers application.

USE CASES

1. Solar Charging: Use this folding panel for 12-24v battery system charging with a MPPT charge controller.

3. Power Station Charging: Plug the solar panel directly into a power station such as the Ecoflow Delta which has a built in MPPT

WHATS IN THE BOX?

• 1 xCPP 200w Folding Panel
• 1 x Parallel Wiring Harness MC4
• 1 x MC4 to XT60 adapter
• Carrying Case

CPP 200w Folding Solar Panel Electrical Specs:

• Maximum Power: 200W

• Open-Circuit Voltage: 23.4V
• Voltage at Pmax:19.8V
• Short Circuit Current: 10.71a
• Current at Pmax (Imp): 10.10a
• Cell Efficiency: 21.80%
• Coating: EFTE
• Maximum System Voltage: 60VDC
• Power Temperature Coefficient: -0.43%/degree C
• Voltage Temperature Coefficient: -0.34%/degree C
• Current Temperature Coefficient: 0/05%/degree C
• Output Power Tolerance: +/-3%
• Operation Temperature: -10~60 degrees C

CPP 200w Folding Panel General Specs:

• Solar Cell: TW Solar A grade monocrystalline cells
• Number of Cells / Connections: 36(4x9)
• Unfolded Size: 1370x800x25mm
• Folded Size: 800*685*50mm
• Weight: 9.5kg
• Waterproofing: IP65/IP67
• Warranty: 12 months

200w Folding Panel Technical Datasheet

Setup Instructions
