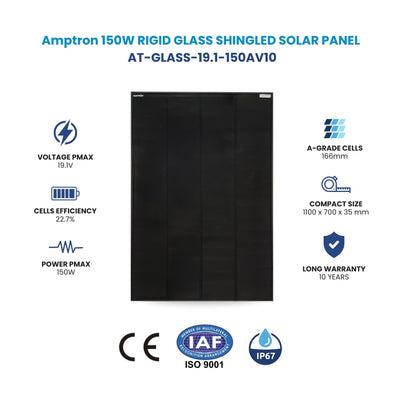

Utilize narrow roof space with the Amptron 150W 12V Slimline Shingled Glass Solar Panel, a highly efficient and rugged power source specifically designed for the tight dimensions of RVs, campers, caravans, or anything on the move. This slimline panel features advanced shingled cell technology for superior shading tolerance and vibration resistance, ensuring consistent output even in challenging environments. Built with a durable 35mm frame and anti-PID performance, it is the perfect scalable solution for charging 12V batteries or connecting in series for high-voltage home backup and marine systems.
- Slimline Design: 1110 x 700 x 35 mm footprint, perfect for narrow mounting areas.
- Shingled Cell Tech: Enhanced durability and superior performance in partial shade.
- High Output: 150W peak power with 19.1V Max Power Voltage (Vmp).
- Built to Last: Rugged glass construction with high shock and vibration resistance.
- Versatile Charging: Ideal for 12V setups or series-linked high-voltage arrays.
Maximize your off-grid power potential with Amptron® 150W Rigid Glass Shingled Solar Panel, a rugged and high-efficiency energy solution specifically engineered for the demanding environments of RVs, caravans, and marine applications.
Featuring advanced 166mm shingled A-grade mono solar cells with a layered electrode pattern, this panel offers superior mechanical load support and a significantly reduced fragmentation rate compared to traditional designs.
The innovative shingled construction, paired with a high cell efficiency of 22.7%, ensures stable power generation and excellent anti-PID performance, making it the ideal choice for high-vibration transportable environments where durability is non-negotiable.
Designed for versatility in tight spaces, this compact panel measures 1100 x 700 x 35 mm and weighs just 8.2 kg, allowing for easy mounting on narrow roof areas via its robust Aluminum frame. With an IP67 waterproof rating and an operating temperature range of -40°C to 85°C, it is built to withstand Australia’s harshest climates while delivering a reliable 19.1V (Vmp) output.
Whether you are charging a 12V battery system or building a larger array, this panel integrates seamlessly with Amptron’s ecosystem of MPPT controllers and lithium batteries to keep your adventure powered longer.

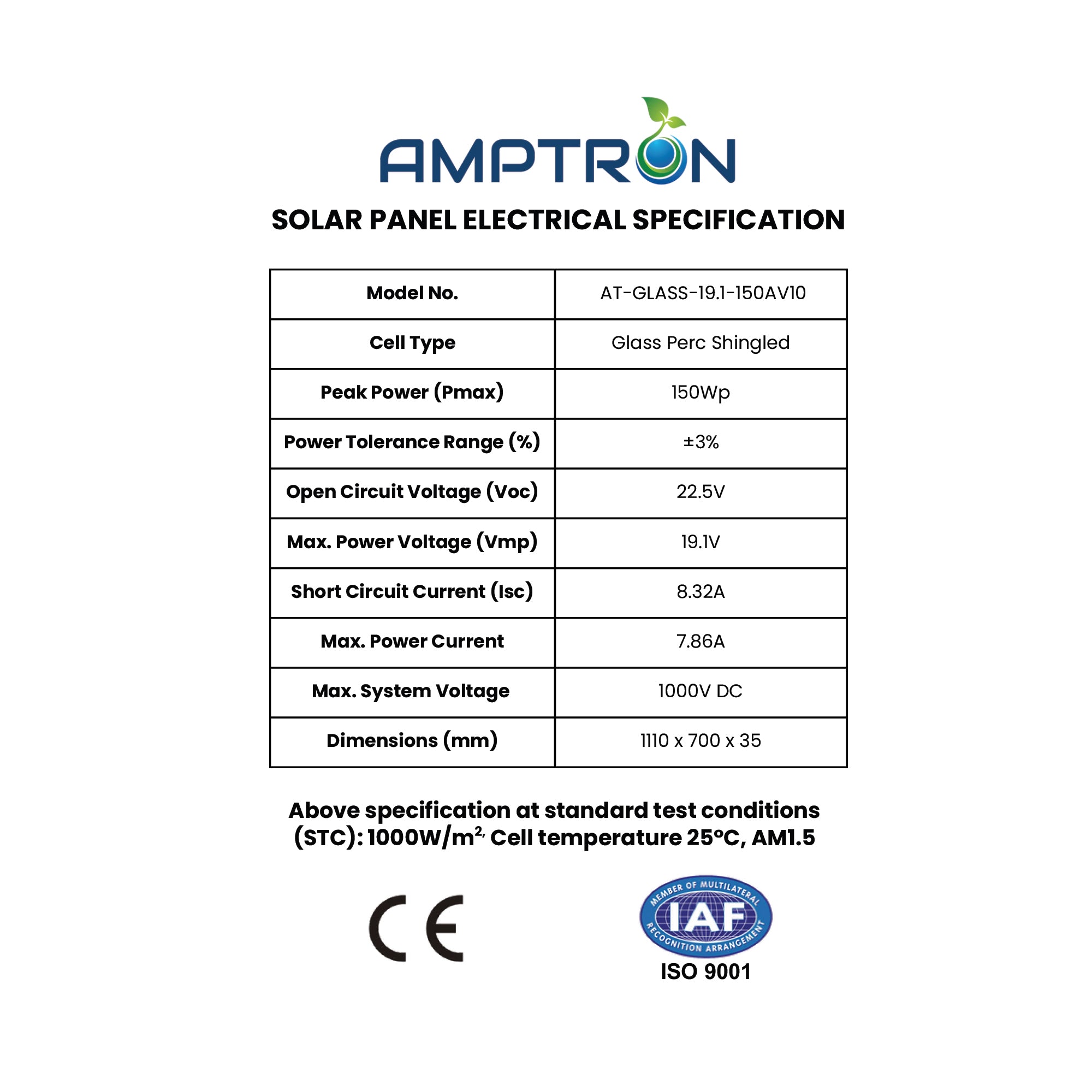

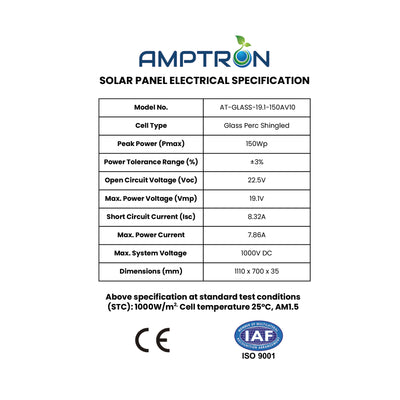

Specifications
|
Item
|
Specification
|
Description/Remark
|
|
Model
|
AT-GLASS-19.1-150AV10
|
150W 12V Glass Perc Shingled – 35mm Slimline Solar Panel
|
|
Maximum power rating
|
Pmax 150 Watt
|
|
|
Dimensions – LxWxH
|
1100x700x35mm
|
|
|
Weight
|
8.2kg
|
|
|
Tolerance on power output
|
+/- 3.0 %
|
|
|
Current at max power – Imax
|
7.86 Amps
|
|
|
Voltage at max power – Vmax
|
19.1 Volts
|
|
|
Short circuit current – Isc
|
8.32 Amps
|
|
|
Open circuit voltage – Voc
|
22.5 Volts
|
|
|
No. of cells
|
132 (4 x 33)
|
|
|
Cell Efficiency
|
22.7%
|
|
|
Maximum system voltage
|
1000V DC(IEC)
|
|
|
Junction Box
|
with 1.5sqmm 2 core cable MC4
|
|
|
Output Cable
|
Solar mc4 4mm2 cable
|
|
|
Max. System Voltage
|
1000V DC (IEC)
|
|
|
Operating Temperature
|
– 40°C ~ 85°
|
|
|
Waterproofing Rating
|
IP67
|
|
|
Warranty
|
10 years
|
|
Warranty
Solar panel warranty policy
Downloads
Solar Panel Datasheet
