With 12 fused DC positions, and 6 AC positions you can manage the power distribution around your RV or tiny home. Control up to 6 DC positions from the EcoFlow app or Console.
1 x AC/DC Smart Distribution Panel
1 x Distribution Panel Mounting Kit
Safe and reliable power control.
With a simply-wired plug and clear LED indicators, the Smart Distribution Panel offers an easy setup and makes adjusting power distribution more manageable than ever.

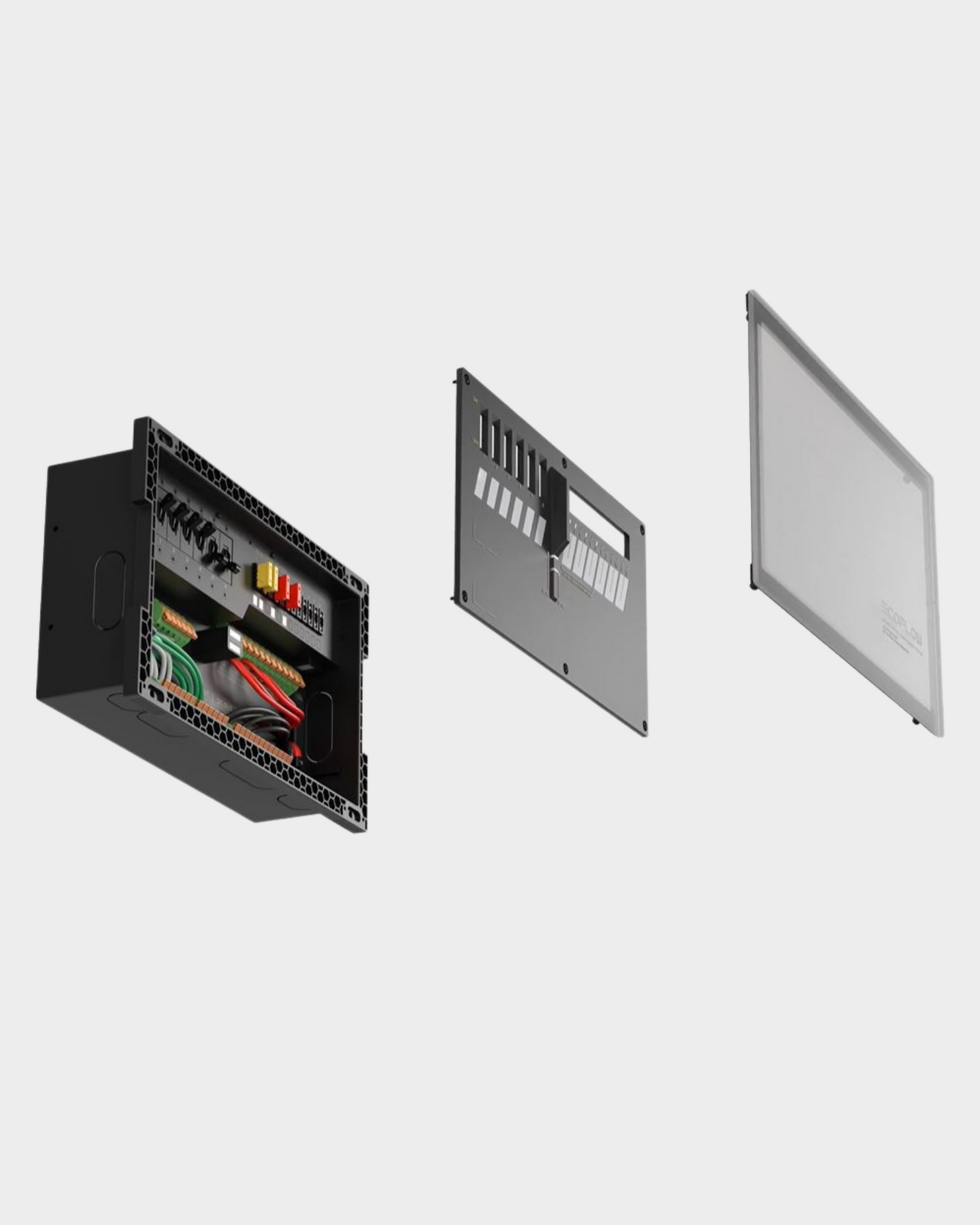

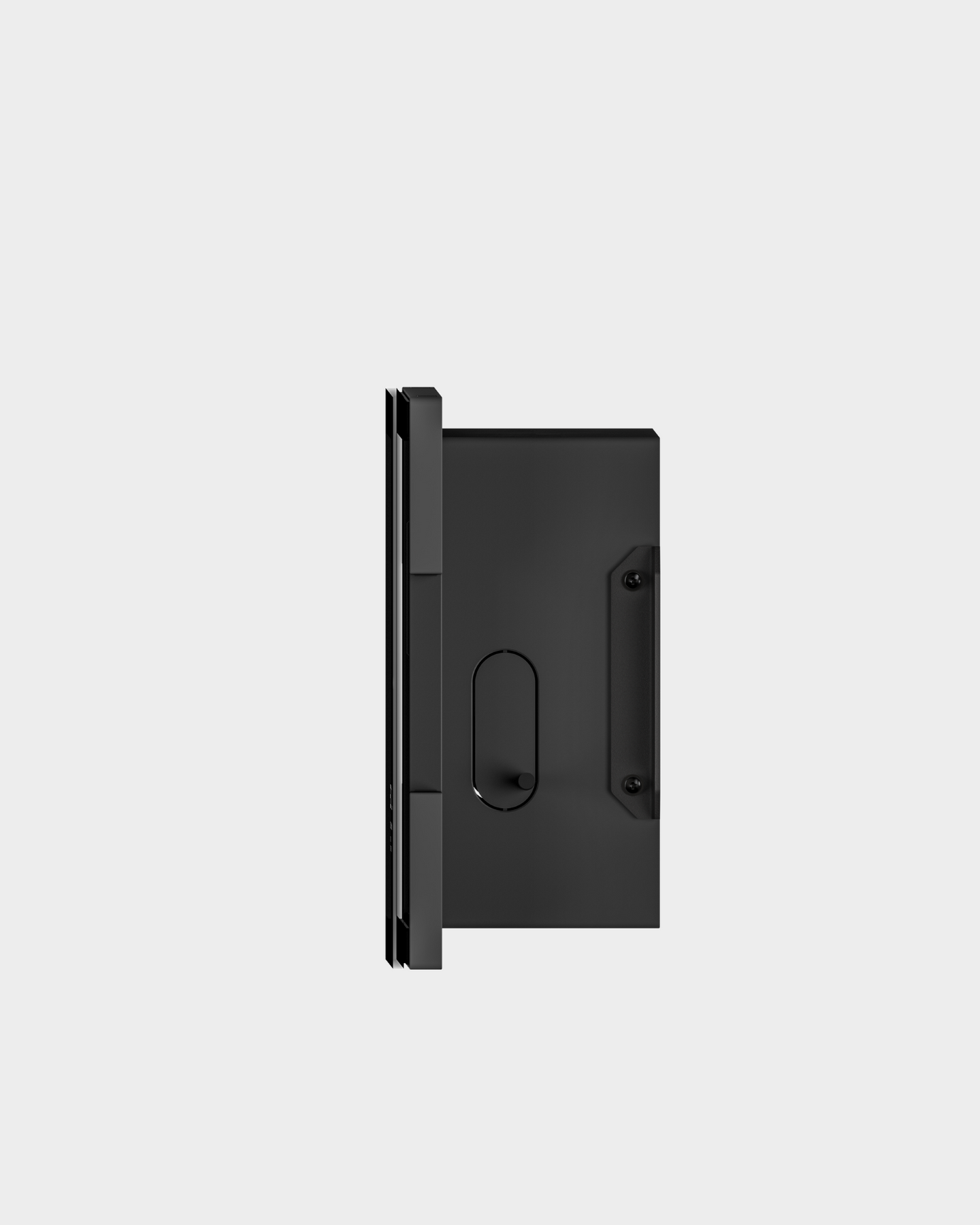

AC/DC SMART DISTRIBUTION PANEL
|AC Main Input||16A Max, 230V, 3600W|
|DC Main Input||70A Max|
|AC Output||6 AC Positions, 10A Max Each|
|DC Output||12 Fused DC Positions (6 Positions controllable via Power Kit Console & APP)|
|Operating Temperature||-25°C - 60°C|
|Dimensions||21 x 35.4 x 9.8cm (Height x Width x Depth)|
|Tests and Certifications||CE, UL, FCC, EMC Class B|
