200W Marine Grade Flexible Solar Panel High Voltage 12/24/36/48V

Name: 200W Marine Grade Flexible Solar Panel High Voltage 12/24/36/48V
Brand: Clean Portable Power
SKU: AT-FLEX-74.3-200BV10
Price: 339.00 AUD
Availability: InStock

200W Marine Grade Flexible Solar Panel High Voltage 12/24/36/48V

$339.00 $349.00

A truly flexible panel that works anywhere and charges any voltage systems - 12V/24V/36V/48V

Product Highlights

Please note, the product is in pre-order status, and the shipping will start from 10/10/2026
Weighs only 3.78 kg & 3mm thin
High Voltage 74.3V Vmp suits 12V, 24V, 36V and 48V systems.
25% efficiency for reliable output in high heat by TF-D Cells
IP68 junction box with MC4-compatible connectors and bypass diodes.
Marine grade build quality, ideal for Australian Boating, Caravan, RVs & other mobile applications.
6-years warranty
Contact us if you want Anderson ready panel

Product variants

Recommended System Bundle

Amptron 60A 12/24/36/48V MPPT Solar Charge Controller

$348.00 $498.00

200W Semi-Flexible Perc-Shingled Solar Panel with ETFE Coating for Boats, 4WD & Mobility Vehicles

$320.00

Amptron 200W 12/24/36/48V High Voltage Glass Solar Panel

Panel Only

$259.00

In stock, ready to ship

AT-FLEX-74.3-200BV10

Pickup available at 38/6 Bellambi Lane, Bellambi NSW 2518

Usually ready in 2-4 days

Share:

Share

Pairs well with

In stock! Ships within 1-2 business days

14-day peace of mind returns

Aussie owned & operated

Free shipping above $999

200W Marine Grade Flexible Solar Panel High Voltage 12/24/36/48V

$339.00 $349.00

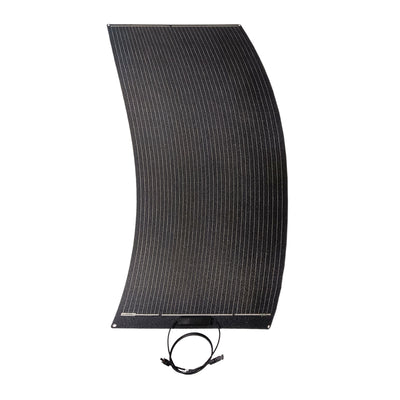

Curved coachroofs, biminis and van roofs have never played nice with rigid panels. The Amptron 200W Flexible TF-D panel is built to actually sit flush wherever you need it, at just 3.78kg and 3mm thin, and it's got the voltage to back it up.

1. Fits where rigid panels can't

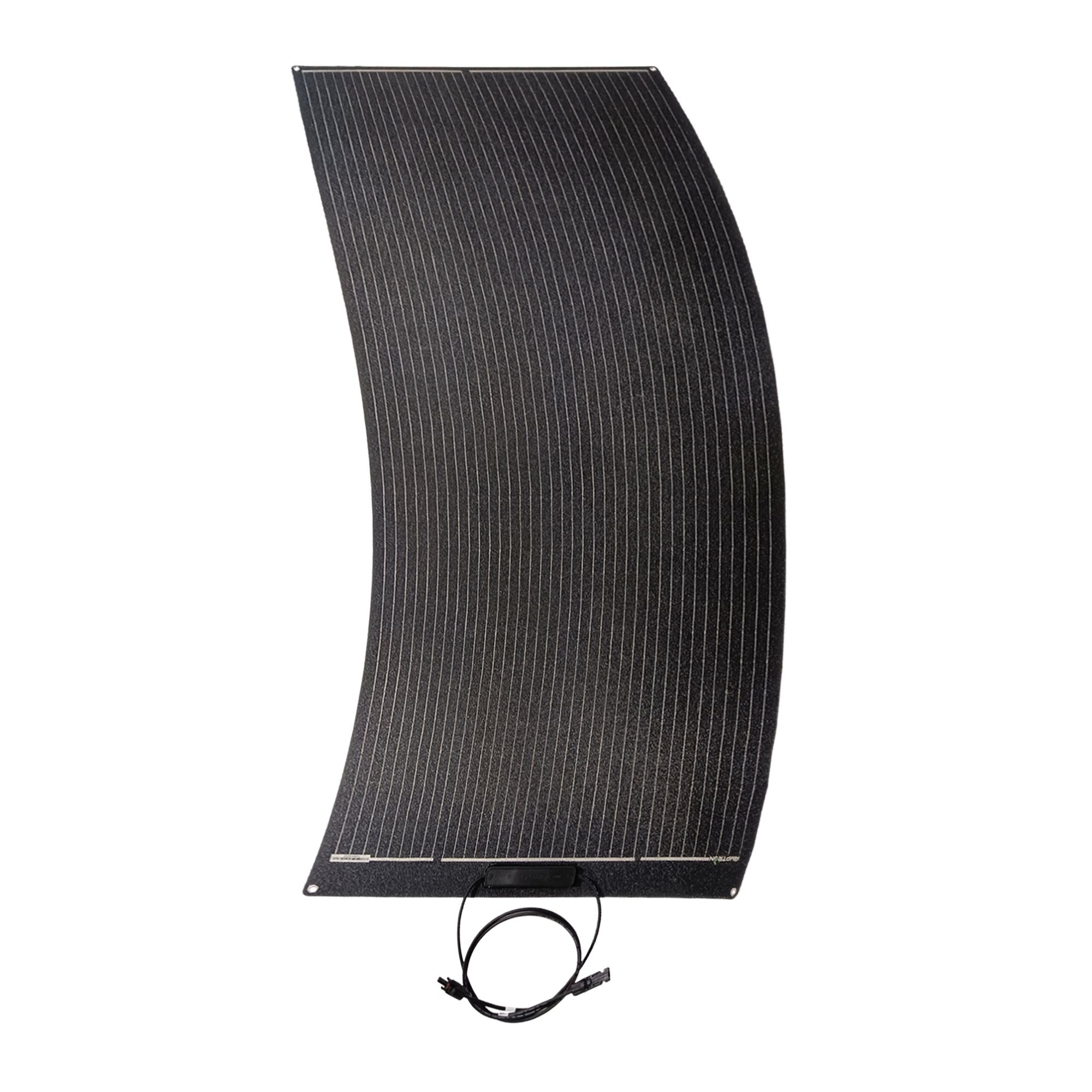

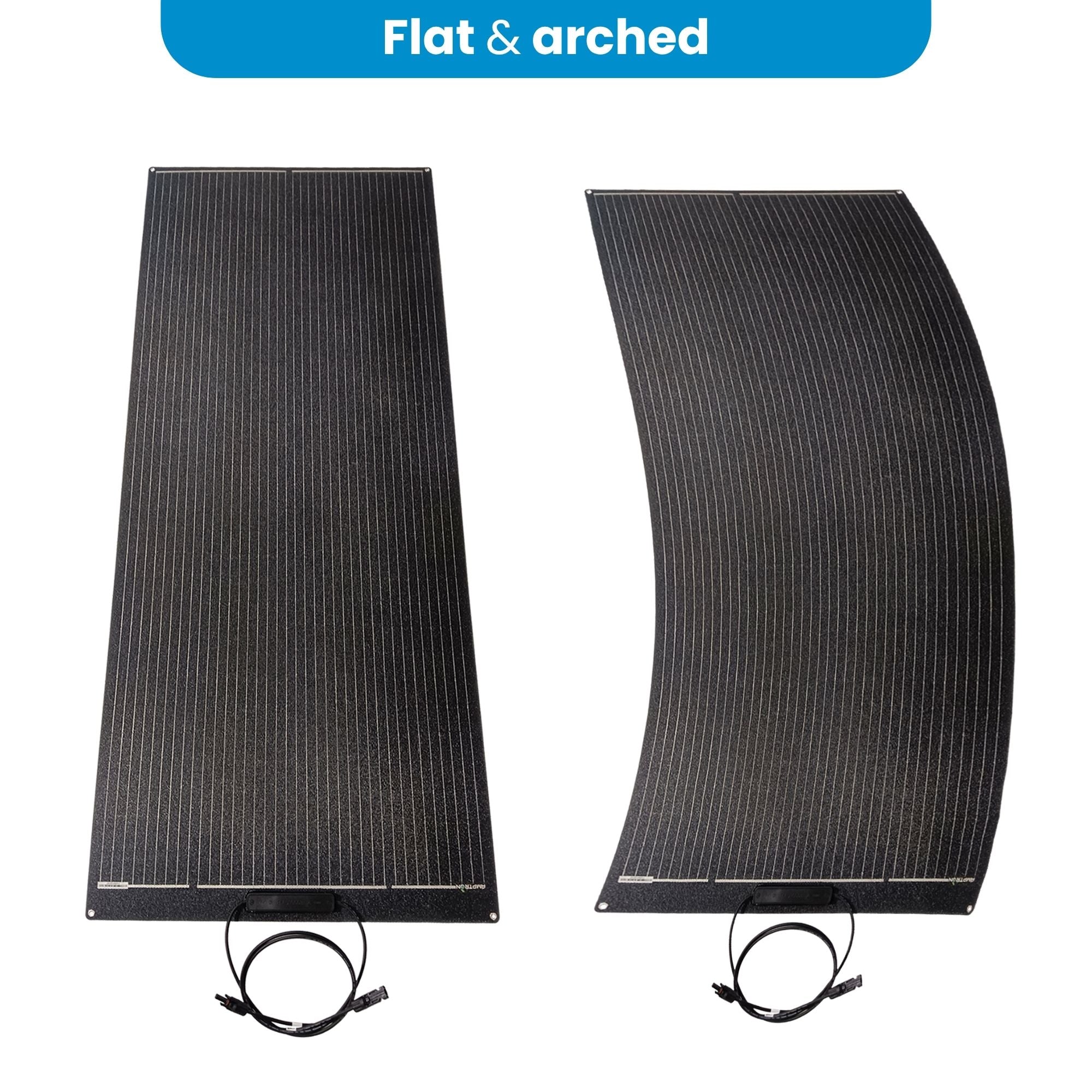

Bends to a 1m curve radius so it follows the shape of your boat deck, RV roof or canopy instead of fighting it.

2. One panel does the job of four

With a 74.3V Vmp output, this panel works across 12V, 24V, 36V and 48V systems through a compatible MPPT controller, so you're not stuck buying different panels for different setups.

3. Keeps producing when it's hot

A-grade mono cells rated at 25% efficiency and a solid temperature coefficient mean this panel keeps generating power even when it's baking on a black deck in the Aussie sun.

4. Sealed up and ready for the elements

IP68 rated junction box, dual bypass diodes, and a 900mm MC4-compatible cable, built to handle rain, spray and dust without missing a beat.

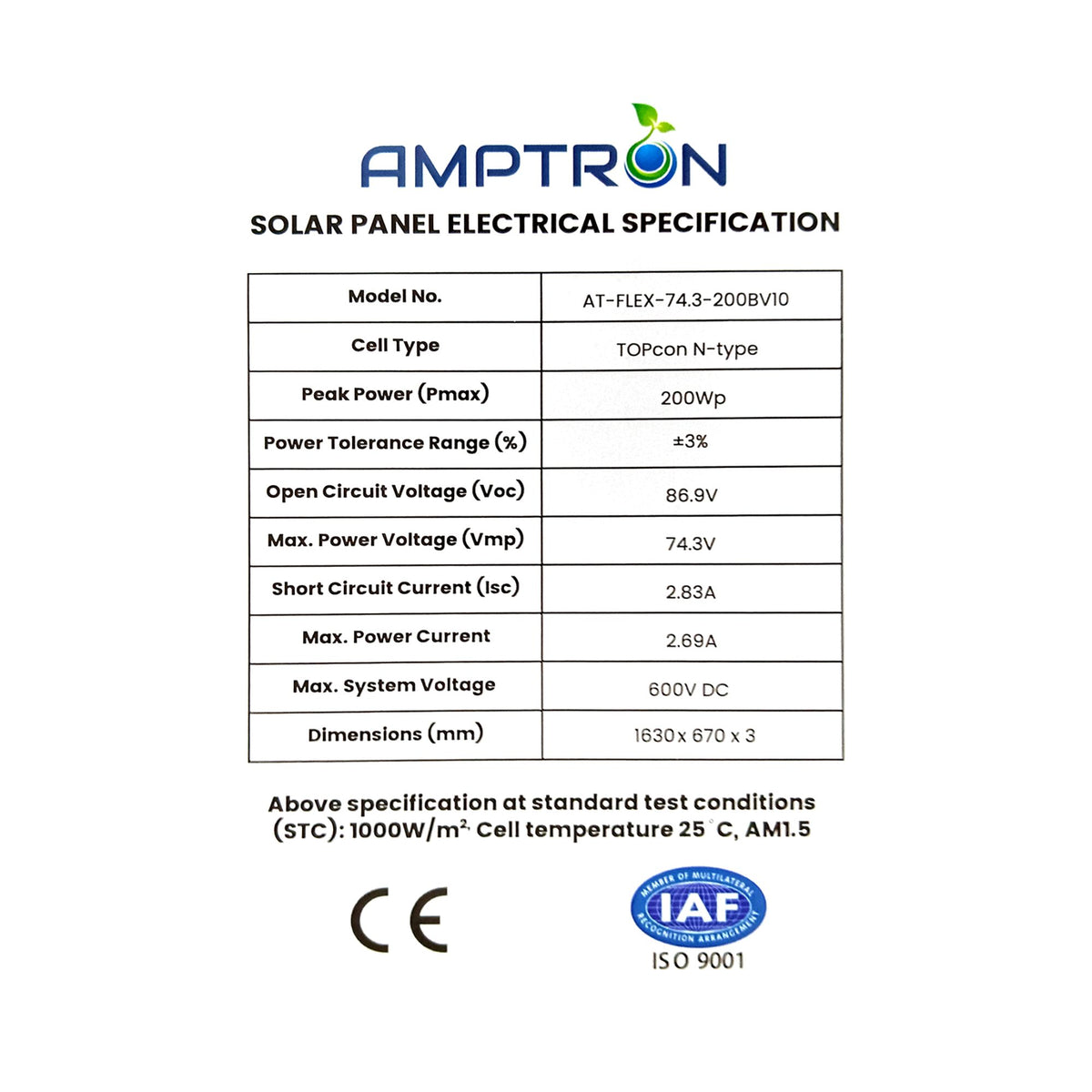

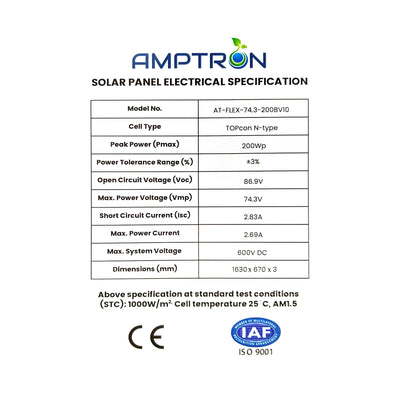

Specifications

Model	AT-FLEX-74.3-200BV10
Maximum power (Pmax)	200W
Open-circuit voltage (Voc)	86.9V
Voltage at Pmax (Vmp)	74.3V
Short-circuit current (Isc)	2.83A
Current at Pmax (Imp)	2.69A
Cell efficiency	25%
Maximum system voltage	600V DC (IEC)
Power temperature coefficient	-0.35%/°C
Voltage temperature coefficient	-0.275%/°C
Current temperature coefficient	0.045%/°C
Output power tolerance	±5%
Operating temperature	-40°C to +85°C
Solar cell type	A grade mono solar cells, 166mm
No. of cells and connections	128 (4 x 32)

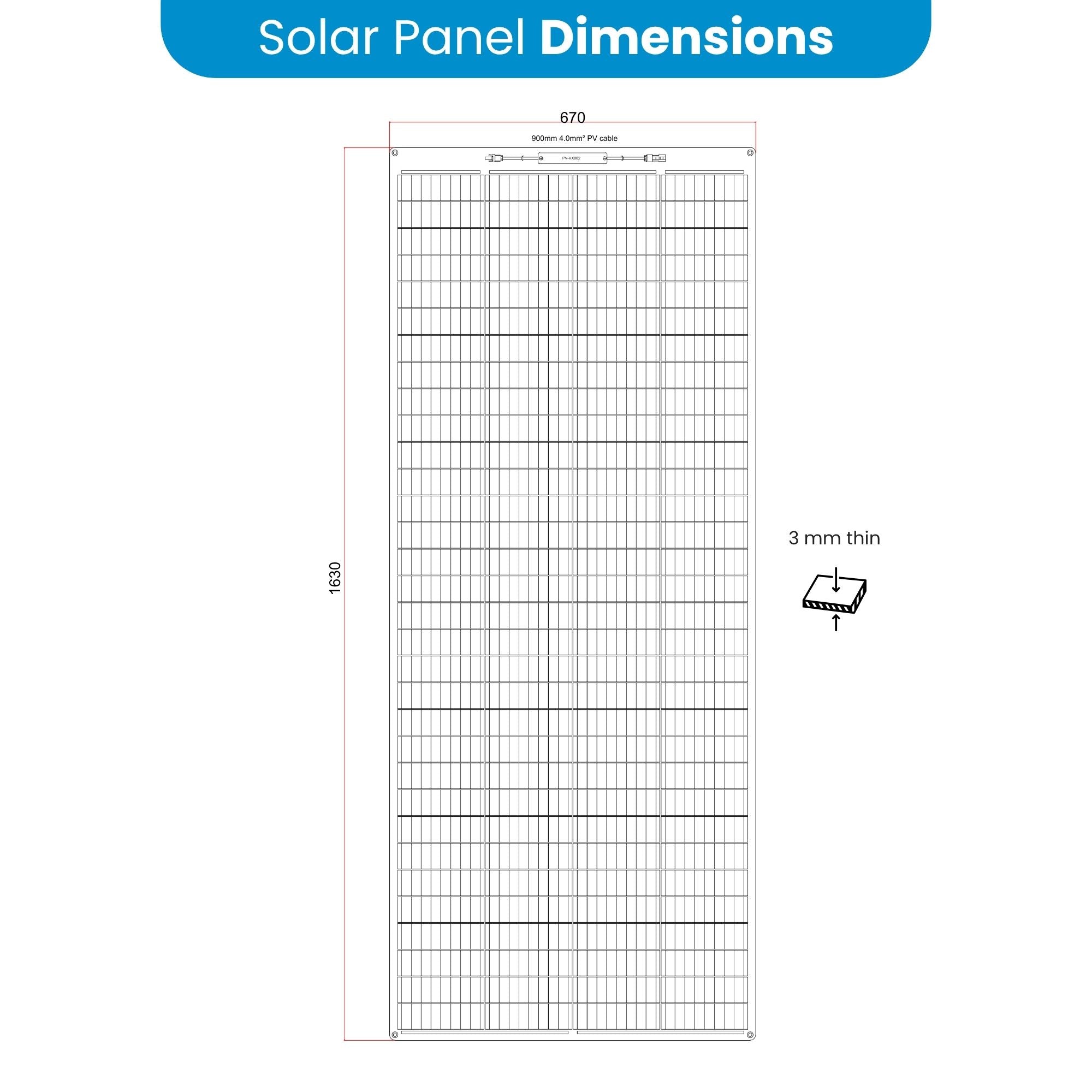

Module dimensions	1630 x 670 x 3mm
Weight	3.78kg
Output cable	Junction box (2 x bypass diodes) + 900mm, 4mm² cable, MC4 compatible
Waterproof rating	IP68
Maximum bending arch height	320mm (minimum curve radius 1m)
Warranty	6-year manufacturer warranty

Features

The Semi-Flexible solar panel is the perfect versatile energy companion for mobile applications. The thin profile provides low wind resistance and its extremely light weight makes it well-suited to be used on yachts, boats, RVs, 4wd vehicles etc.

Each cell is tested and graded for power, low light performance, and being free from micro-cracks before going into module production. In-line monitoring is performed for pre and post-lamination cell testing and laminate stability. The module design incorporates a superior 7-layer lamination process with a moisture protected border for trouble-free performance over the module life.

The solar cells use PERC Shingle-cell technology to achieve zero cell spacing, which effectively increases the light-receiving area of the module. Other features:

Ultra-thin & lightweight.
Outstanding electrical performance in higher temperatures and low irradiation.
Robust moisture ingress protection
Rigid, waterproof junction Box.
The Solar panels also include an industrial grade ETFE coating for long life and
durability

Warranty

6 Years

Solar panel warranty policy

Downloads

Data Sheet coming soon...

REVIEWS

FAQs

If your questions is not listed below, please ask in the form below:

Will this work with my 24V or 48V system?

Yes. With a 74.3V Vmp output, this panel is suited to 12V, 24V, 36V and 48V setups when paired with a compatible MPPT solar charge controller.

How tight a curve can it handle?

It flexes to a minimum radius of 1m, with a maximum bending arch height of 320mm, so it's suited to most curved boat decks, biminis and vehicle roofs. Avoid mounting on anything tighter than that.

Can it handle rain and wash-downs?

Yes, the junction box is IP68 rated and the panel is built for marine and mobile use, but as with any flexible panel, it should be bonded to a solid, well-ventilated surface rather than left unsupported.

What connectors does it use?

It comes with a 900mm cable and MC4-compatible connectors, ready to wire straight into a compatible solar controller.

Is it possible to have Anderson connectors on Solar panel?

Yes, please give us a call before placing an order at +61 460 952 792
