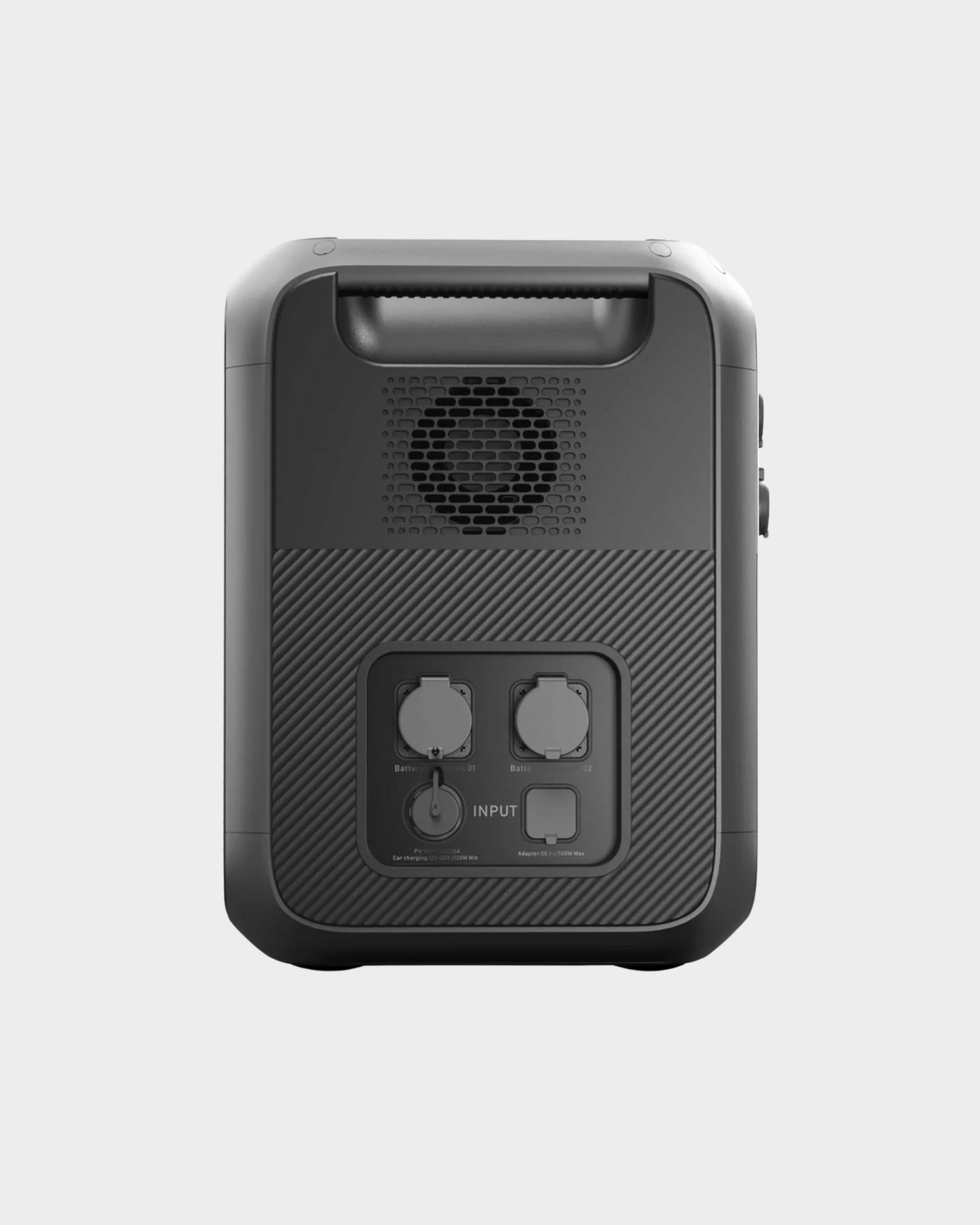

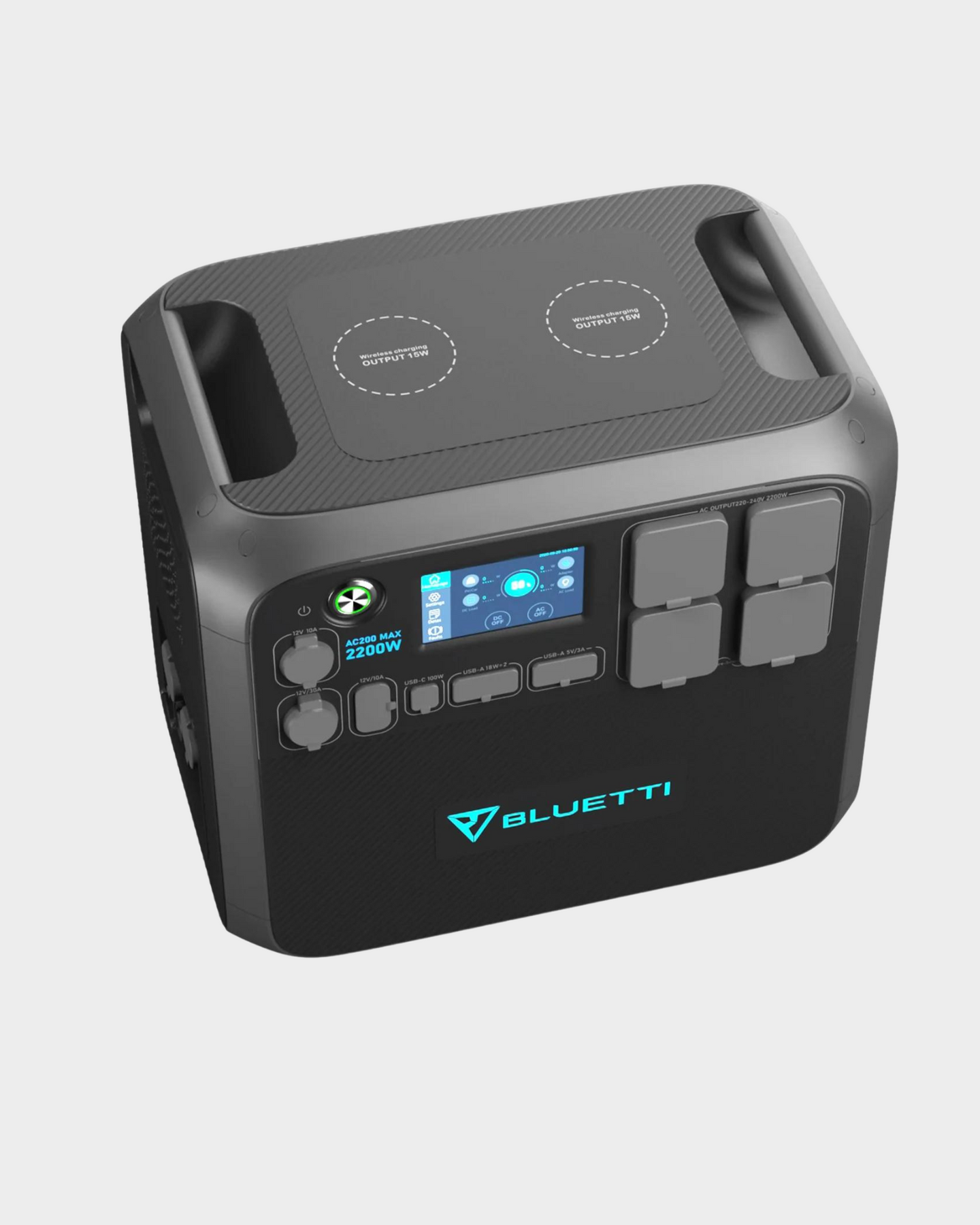

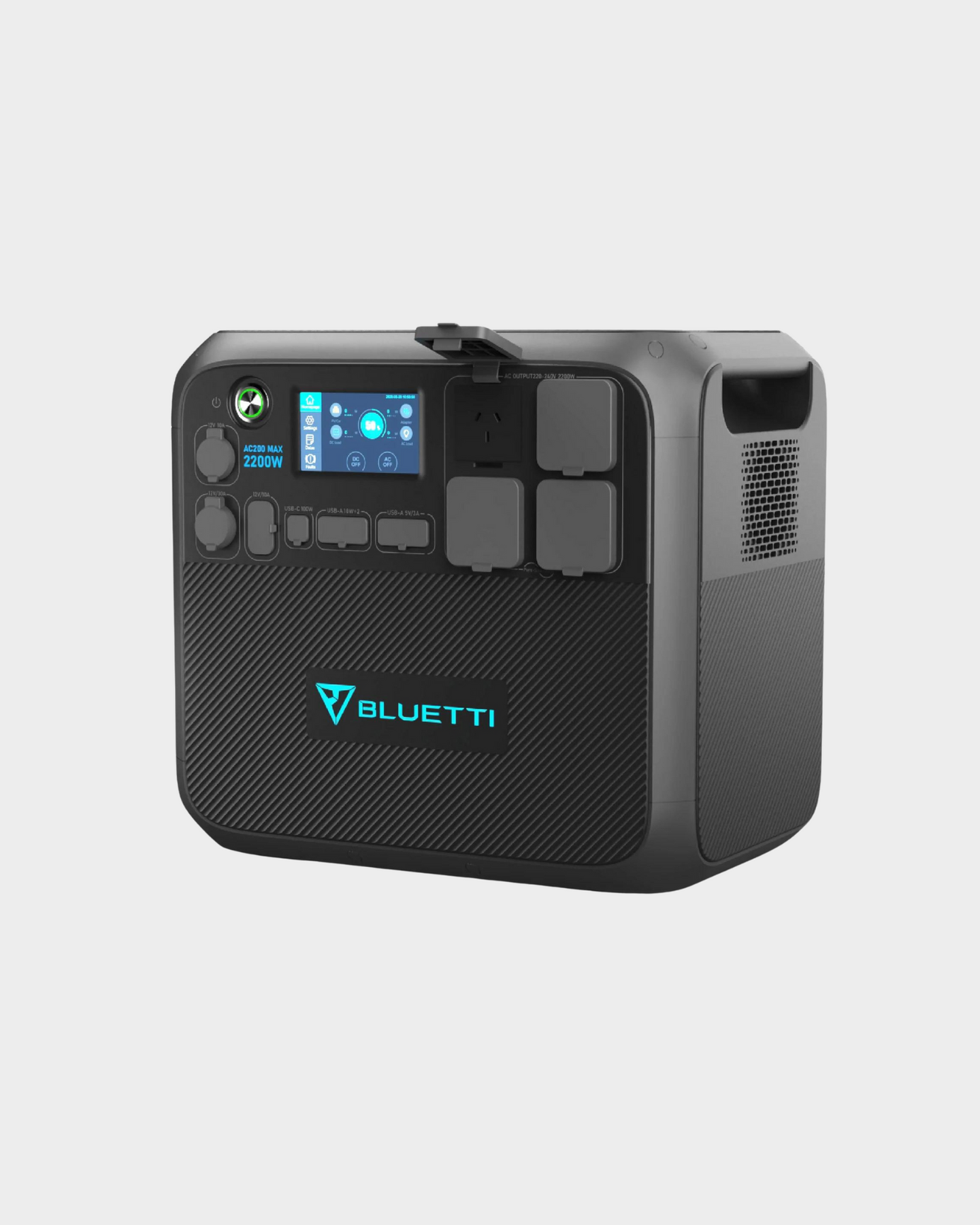

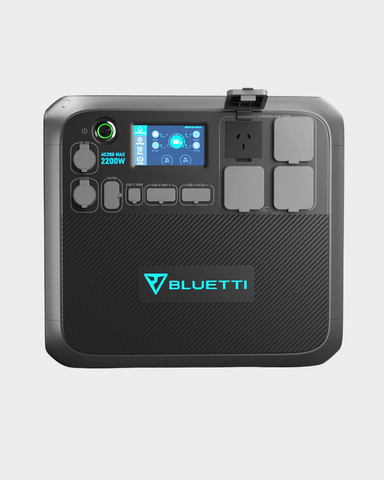

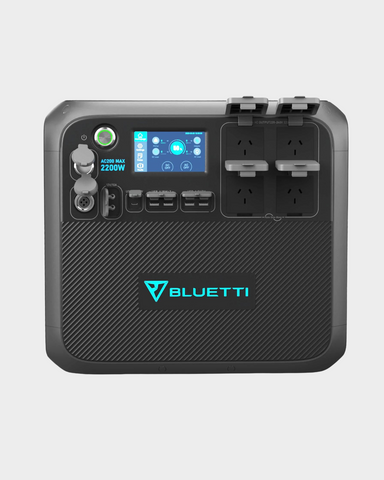

Bluetti AC200MAX Power Station

Regular price $2,999.00 Sale price $2,599.00
/
- +
    delivery
delivery
delivery
delivery
delivery





All-round Upgraded Expandable Power Station

BLUETTI's first expandable power station-AC200MAX with a 2,048Wh LiFePO4 battery and a 2,200W pure sine wave inverter. Your mobile power centre at home or away.

  • 2,200W AC Pure Sine Wave Inverter (4,800W Surge).
  • 2,048Wh  Battery Capacity.
  • LiFePO4 Battery with 3,500+ Life Cycles to 80%
  • Expandable Up To 6,144Wh with 2×B230, or 8,192Wh with 2×B300
  • 7 Ways to Recharge (AC/Solar/Car/Generator/Lead Battery/Dual AC/AC+Solar)
  • 900W Max. Solar Input
  • 1300W Max. Fast Dual Charging (Solar + AC Adapter)
  • Smart Control & Monitor in BLUETTI App

Compatible with any of the solar panels from CPPower, and cables can be customised to your lengths (on request).

Bundle with a Bluetti B2B230 Extra Battery and/or Clean Portable Power Solar Panel and Save!

  • Double the capacity with a Bluetti B2B230 2kWh Extra Battery for $3799 total


Capacity or Flexibility?

We've got you covered! AC200MAX supports up to two B230(2kWh each) or B300 (3kWh each) battery modules for a staggering 8kWh capacity if required (B230 and B300 battery pack are sold separately).



Featuring a huge 15 Outlets

The  AC200Max's 2200W Inverter allows you to run pretty much anything! Plus charge your smartphones, tablets, lights, GoPros, refrigerators, coolers, projectors etc with another 11 DC Port options.

Ports include:

  • 4 X AC 240V Sockets (2200W w/ 4800W Surge)
  • 2 X Regulated 12V (Car & RV Sockets)
  • 1 x USB-C
  • 2 x USB-A Fast Charge (100W)
  • 2 x USB-A (15W)
  • 2 X DC 12V/10A socket (DC 5521 5.5mm Outlet)
  • 2 x Wireless Charging Pad (15W)

Charge the Way You Prefer

AC200MAX  power station supports multiple ways to recharge. This includes wall outlet (AC), petrol generator, car outlet or Solar Panels. When using a Solar panel, it’s extremely efficient making this a very popular option.

Approximate charge times / input limits

  • Wall outlet (AC) - 4 - 4.5 hours (400W Max)
  • Petrol Generator -  4 - 4.5 hours (400W Max)
  • Car Charging - 6-8 hours
  • Solar Charging - 4 hours (900W Max)

If you need to charge your unit quickly, the AC200MAX allows 900W solar and 400W adapter input allowing a 1,300W total charging rate, charging up this power beast in less than two hours!

  • 900W Solar + 400W AC Simultaneously - 2 - 2.5 hours
  • Dual AC Adaptor 800W (purchased separately) - 3 -3.5 hours



Stay Connected in Real-time

With smart BLUETTI App, you can monitor, optimize your power consumption and update firmware over-the-air (OTA)away from the unit.


Outlet Versatility

With AC200MAX’s 15 outlets, you get to run all your devices and appliances simultaneously.





BATTERY INFO  Capacity 2048Wh (51.2V,40Ah)
Cell Chemistry LiFePO4 (Lithium Iron Phosphate)
Lifecycle 3,500+ Cycles to 80% Original Capacity
Shelf-life Recharge to 80% Every 3-6 Months
Management System MPPT Controller, BMS, etc.
OUTPUT  AC Outlets 4 x 220V-240V,2200W In Total
Inverter Type Pure Sine Wave
Surge Power 4800W
USB-C Port 1 x 100W Max
USB-A Port 2 x 5V/3A USB-A
2 x 18W USB-A
12V DC Ports 1 x 12V/10A (Car Outlet)
1 x 12V/30A (RV Outlet)
2 x 12V/10A (DC5521) 5.5mm
Wireless Charging Pad 2 x 15W Max (for each)
INPUT AC Adapter Input 400W Max.
Solar Input 900W Max.OCV 10-145VDC, 15A
Car Input 12/24V from Cigarette Lighter Port,8.2A Max.
Max Input 1,300W, with AC+Solar Input
RECHARGE TIMES AC Adapter (400W) ≈5.5~6 Hours
Solar (900W) ≈3~3.5 Hours (With prime sunshine, ideal orientation and low temperature)
12V/24V Car Outlet (100W/200W) ≈10 or 20 Hours
AC+ Solar (1300W) ≈2.0~2.5 Hours (With prime sunshine, ideal orientation and low temperature)
Dual AC Adapters (800W) ≈3~3.5 Hours (Extra adapter is REQUIRED)
GENERAL Scalability Expandable w/ Up to 2 x B230 or 2 x B300


Pass-through Charging Yes
Weight 61.9lbs (28.1kg)
Dimensions (LxWxD) 16.5 x 11 x 15.2 in ( 42 x 28 x 38.65cm)
Operating Temperature 14-104℉ (-10-40℃)
Storage Temperature 14-113℉ (-10-45℃)
Tested & Certifications: UL, CEC, DOE, FCC, CA Prop 65
Warranty: 48 Months (Learn more about BLUETTI warranty policy)


Whats in the box?

  • 1 X AC200MAX Power Station
  • 1 X T400 AC Adaptor + Charging Cable
  • 1 X Car Charging Cable (XT90 - Cigarette Lighter Port)
  • 1 X Solar Charging Cable (MC4 - XT90)
  • XT90 to Aviation Plug (Input)
  • 1 X User Manual
  • 1 X Warranty Card
  • 1 x Certificate of QC Pass



Bluetti AC200Max User Manual (AUS/NZ)
