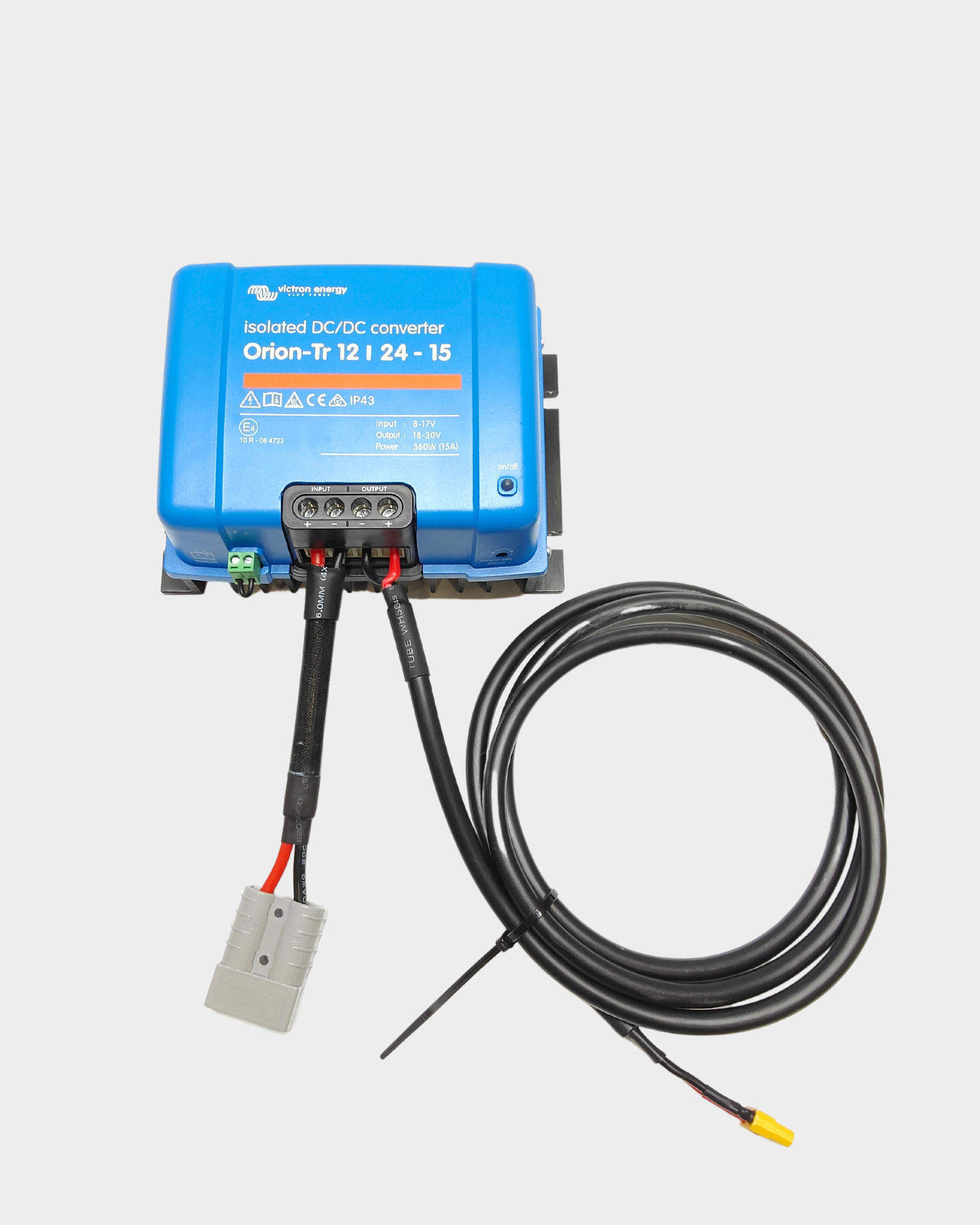

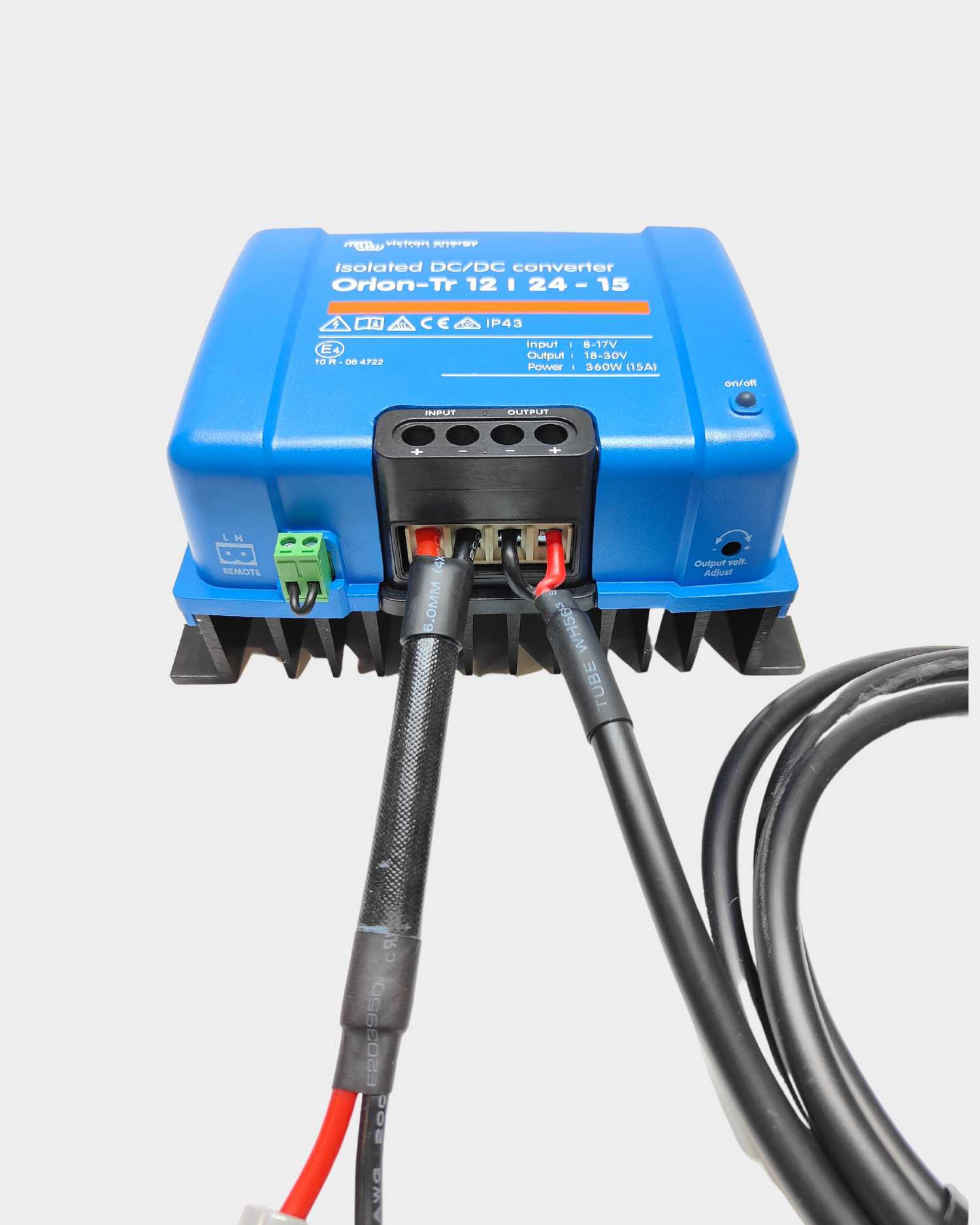

Using the Victron Orion-Tr DC-DC converter 12V to 24V is a solution to increase your car charge rate by 2.5x.
This version is suitable for Bluetti Portable Power Stations.
The Bluetti DC inputs have similar amperage restrictions and slow charge rates from 12V sources. The same effect of increasing charge rates is found by increasing the chargers output voltage.
This DC/DC is isolated meaning its safer to use if there is an issue on either the input or output side.
Clean Portable Power builds these units inhouse with connectors and lengths of your choice, fully tested so its plug and play.
This is available in:

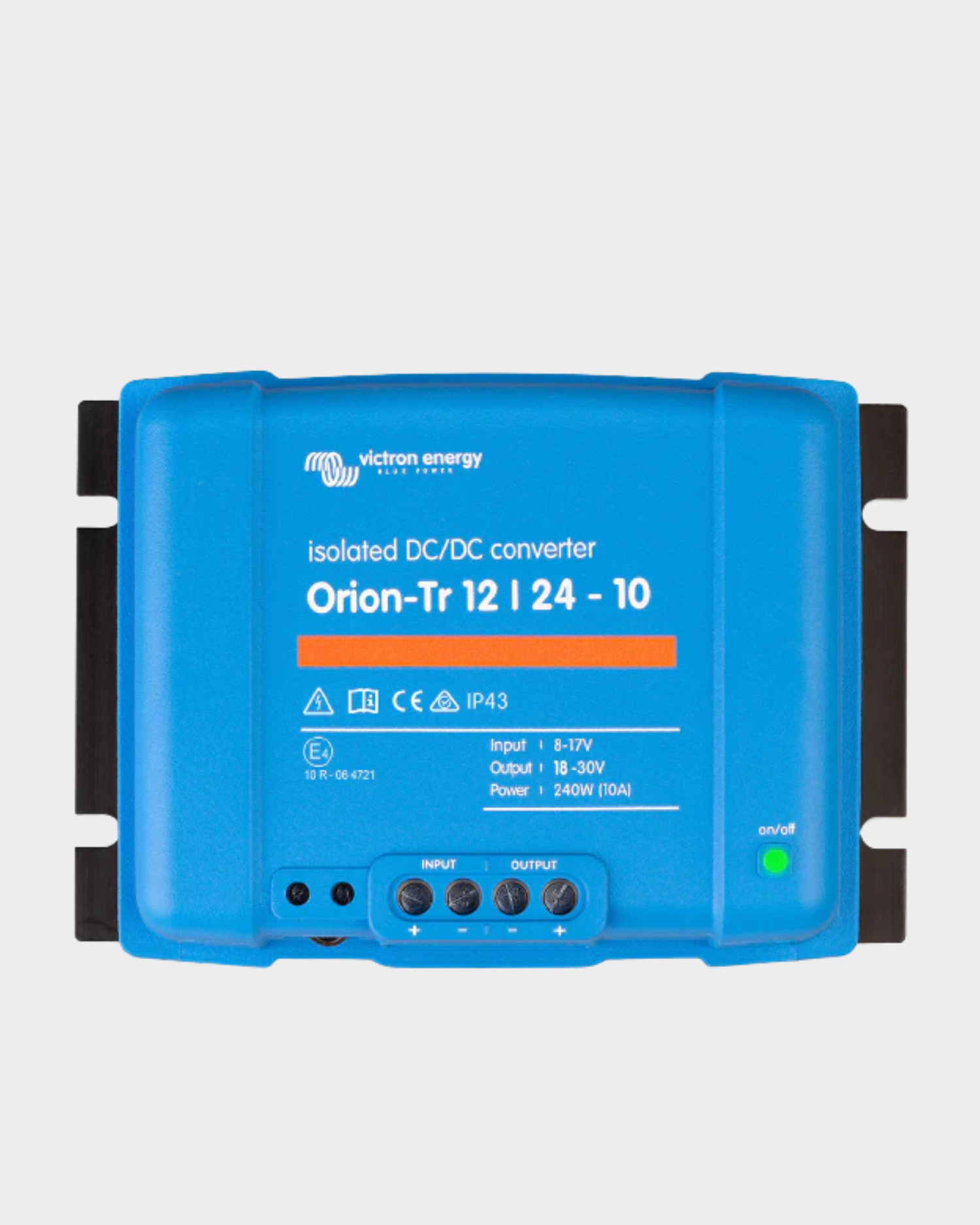

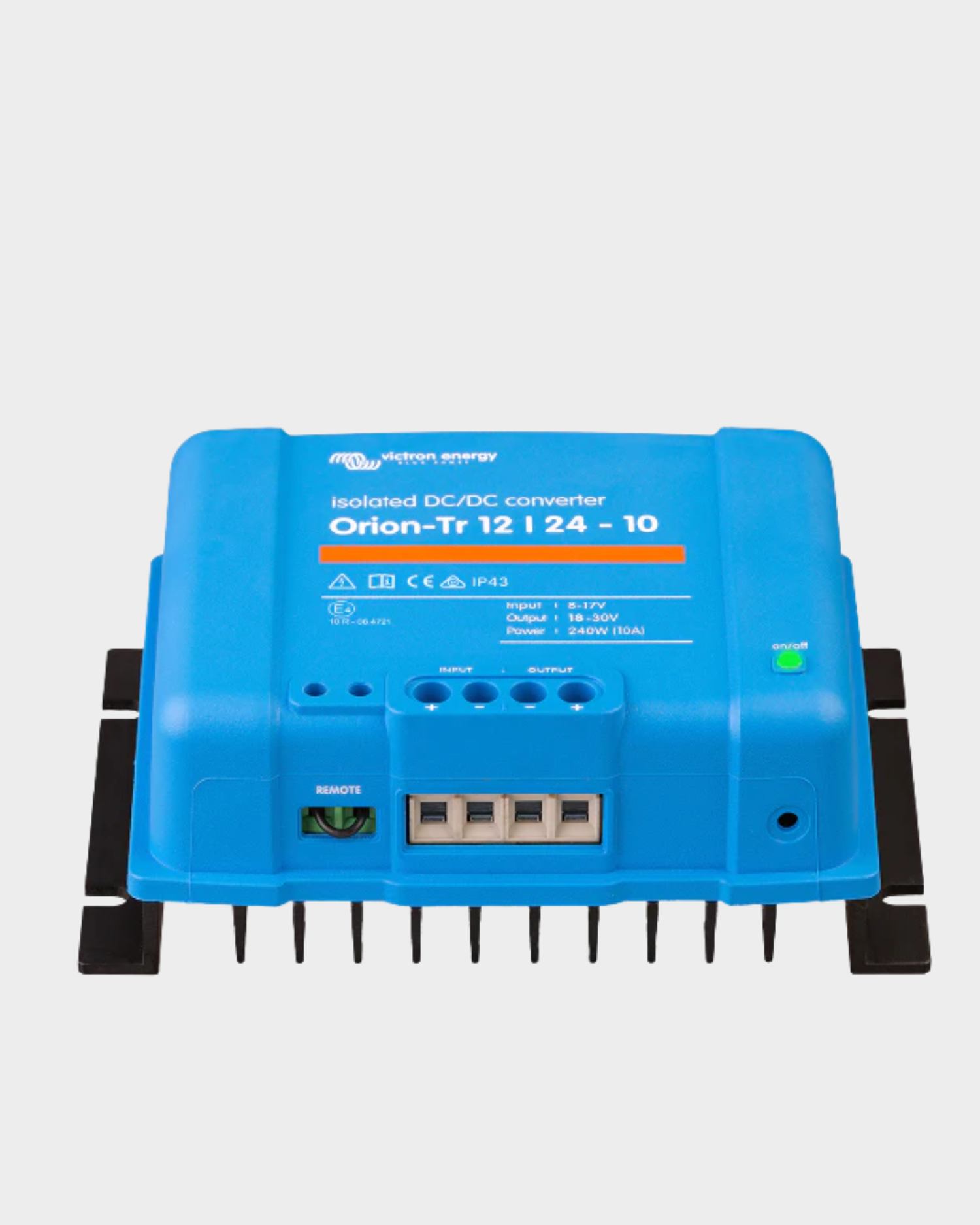

10A Version - Suitable for Bluetti AC200P, AC180
15A Version - Suitable for Bluetti AC200MAX, AC300 and AC500 models
An Anderson Connector is required in vehicle (see your local Auto-Electrician for this). This should have a 50a fuse on it and only operate when the engine is running (alternator supports charging). This is done via a ignition solenoid or voltage-sensitive relay. Please note this charger is for vehicles or situations that meet these pre-requisites. If you do not have an ignition controlled input, you may want to consider the 'SMART' version of this charger which controls the input voltage cutoff.
Input Cable - Anderson Connector Default (Contact us for other options).
-Available in 0.5, 1.5m, 3m & 5m lengths
Output Cable - Bluetti S
-Available in 0.5, 1.5m, 3m & 5m lengths
Our high - quality cables are made in-house Australia. We use highly flexible dual-core copper cable which is shielded and surrounded by a silicone external cable.
Charge Rates Table
| MODEL | 10A CHARGER WATTS | 15A CHARGER WATTS |
| BL AC200P, AC180 | 240W | NA |
| BL AC200MAX, AC400, AC500 | 240W | 440W |
Features of The Charger:
Remote on/off
The remote on/off eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or by for example the engine run/stop switch.
Adjustable output voltage: can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models are short circuit proof and can be paralleled to increase the output current.
An unlimited number of units can be connected in parallel.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
