Double the capacity of your PowerUp3600 unit.
1 extra battery is 3072Wh, you can choose up to 3 batteries to expand your power system up to 12kWh or 12,288 Wh output capacity which makes it one of the highest capacity portable power stations on the market. It is ideal for supporting your household power outages as well as powering mobile and remote working sites delivering a reliable and scalable power solution wherever you need it.
Single battery size is 3072Wh (3kWh) OR 256 Ah (12V equivalent)
DC 12V 50A Output, 30A DC Input – with Anderson Connectors
This unit is addition to the PowerUp3600 Set & only includes 1 battery
Includes a battery cable with additional length, suitable for the bottom of the stack
Scalable Backup for Extended Off-Grid Power
Expand your PowerUp 3600 system with the PowerUp 3072Wh Extra Battery Module, purpose-built for reliable, high-capacity energy storage. Each unit adds an additional 3072Wh (3kWh) of clean, silent, and portable power — allowing you to scale your total storage up to 12,288Wh (12kWh) with up to three extra batteries connected.
Designed to support everything from home emergency backup to remote worksite operations, this battery uses advanced LiFePO4 (lithium iron phosphate) cells for superior safety, long lifespan, and optimal performance in Australian conditions.
Why Add an Extra Battery?
- Long camping trips or remote travel
- Backup during extended blackouts
- Powering mobile businesses, worksites, or off-grid cabins
- Scaling your PowerUp3600 system from 3kWh up to 12kWh
Note: This is an add-on unit and must be used with the PowerUp3600 main system.
Backup Time
| Appliance/Device |
Power (W) |
Backup Time (hours) |
| Coffee Maker |
800 |
3.8 |
| Electrical Grill |
1560 |
2.0 |
| Microwave |
700 |
4.4 (2 min heating > 120 times) |
| Kettle |
2200 |
1.4 |
| Portable Fridge |
100 |
30.7 |
| Toaster |
800 |
3.8 |
| TV |
110 |
27.9 |
| Projector |
312 |
9.8 |
| Oven |
1650 |
1.9 |
| Water Heater |
800 |
3.8 |
| Air Heater |
2200 |
1.4 |
| Clothes Dryer |
500 |
6.1 |
| Dishwasher |
1800 |
1.7 |
| Security Camera |
10 |
307.2 (12+ days) |
| Floor Lamp |
40 |
76.8 |
| Refrigerator |
120 |
25.6 |
| Remote Work Setup (Laptop, Mobile & Screen) |
200 |
15.4 |
| Portable or Window Aircon |
900 |
3.4 |
| Heavy Duty Electric Drill |
1500 |
2.0 |
| Angle Grinder |
2000 |
1.5 |
| Chainsaw |
2200 |
1.4 |
| Camera |
60 |
51.2 |
| Laptop Charging |
100 |
30.7 |
| Drone |
200 |
15.4 |
| Speaker |
250 |
12.3 |
To calculate estimated backup time with PowerUp 3600, divide the battery capacity (3072Wh) by your device’s power consumption (in watts).
Example:
If your device, like EcoFlow’s portable air conditioner, uses 900W, the calculation is:
3072 ÷ 900 = 3.41 hours
To convert the decimal into minutes, multiply the fractional part by 60:
0.41 × 60 = ~25 minutes
So, the total backup time would be approximately 3 hours and 25 minutes
Use this Calculation Sheet to get number of hours:
PowerUp Set Backup Hours.xlsx

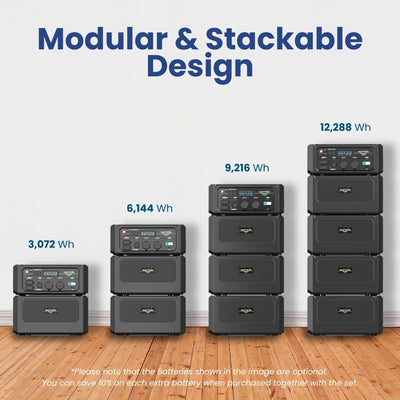

Modular & Stackable Design

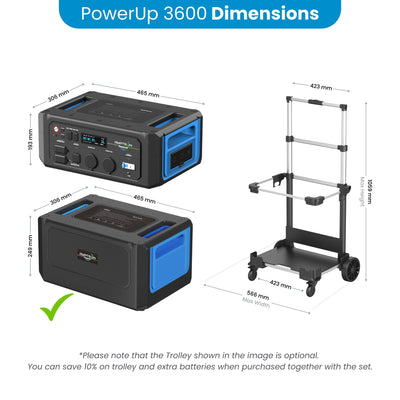

It is designed to carry the 9 kWh system by one person with the folding trolley (The host unit + 2 x Batteries). This makes it easier for transportation and highly suitable for any mobility power applications.

4000+ Cycles Life
Engineered with Grade-A LiFePO4 battery rated to 4000 Cycles (51.2V nominal) for years of reliable portable power on the go!

Versatile Power for Every Scenario – Use Cases for PowerUp 3600
The AMPTRON® PowerUp 3600 is designed to be the ultimate all-in-one portable power solution — built for professionals, adventurers, and homeowners alike. Whether you’re managing a mobile worksite, living off the grid, or preparing for unexpected outages, the PowerUp 3600 offers reliable, scalable energy on demand. With its class-leading 3600W (5000W peak) AC output, modular 12kWh expandability, and market-leading safety features, it’s powerful enough to run industrial tools and sensitive enough for your electronics — all while remaining highly portable thanks to its stackable design and optional trolley.

No matter the environment, PowerUp 3600 keeps you connected, productive, and powered up.
Mobile & Remote Working Sites
Fair Work compliant, Built for Australian job sites.
Unlike other models, PowerUp 3600 includes an integrated AC RCBO breaker compliant with Australian standards, and it is one of the only portable power stations approved for use on formal worksites and public events under Fair Work Commission guidelines. Safely run drills, grinders, and welders on remote job sites — no noisy generator needed. Its modular, trolley-based design ensures easy one-person handling and deployment wherever work takes you.

Home Backup
When the grid goes down, PowerUp 3600 keeps your essentials running. PowerUp 3600 seamlessly supports essential home appliances like fridges, TVs, internet routers, and even air conditioners during outages. Its RCBO safety system ensures safe indoor use without any risk of overload or electrical faults.
Independent Power System
With solar charging, modular expansion up to 12kWh, and long-lasting LiFePO4 batteries, PowerUp 3600 is the heart of a reliable, self-sufficient power setup. Ideal for tiny homes or cabins with no grid connection.
Off-grid Living
Designed for sustainable living, PowerUp 3600 offers long-lasting 4000+ cycle LiFePO4 batteries, fast solar charging, and quiet operation. Made for Australian weather conditions, Power your lighting, refrigeration, tools, and electronics — all with zero emissions.

Power Outages – Ready When the Grid Isn’t
More than 300,000 homes were left in the dark when Cyclone Alfred hit south-east Queensland and northern NSW. In outrageous weather like this, the lights can go out fast without warning.
Having the PowerUp 3600 means you’re never left in the dark ever again. With rapid charging, modular expansion of up to 12kWh, and built-in RCBO protection for safe indoor use — It’s peace of mind when the power’s out to live normally even in situations like Alfred.
Film Making and Photography
Silent, portable, and reliable power for your location filmmaking and wedding shoots. Power up your cameras, lighting, speakers, drones, monitors and laptops with ease. Reliable dependable source for uninterrupted shooting, anywhere for Australian photographers and filmmakers.
Mobile Businesses, Fully Charged
For food vans, pop-up stalls or tradie trailers, this unit delivers commercial-grade power with 15A output and fast recharge. Perfect for multi-day events, festivals, or even indoor mall activations. Stay plugged in from powering everything from lights and EFTPOS systems to cooking appliances and sound setups.
Marine & Boating Power on Demand
Boat ready when you are out on the water. A smart & stackable power solution that delivers clean AC and DC output for marine electronics, lights, and refrigeration — without relying on an onboard generator.
Outdoor Events & Festivals
Power sound systems, lighting, food stalls, and equipment with up to 3600W continuous power. Its silent, emission-free operation is ideal for public spaces and eco-conscious events.
Outdoor BBQs & Gatherings
Take the backyard to the bush with power for your BBQ, music, lights, and eskies. Easy to move, quick to charge — PowerUp 3600 is built for weekends away and backyard legends alike.
RVs & Camping
Hook straight into your van’s 15A inlet and keep all your appliances running off-grid. Whether you’re crossing the Nullarbor or camped by the coast, PowerUp 3600 keeps you powered the whole way.

Pool Heating & Garden Power
Power pool pumps, garden lighting, or outdoor tools where extension cords can’t reach. Its portable design brings reliable power to every corner of your property.
Remote Field Clinics
From rural outreach to emergency relief, PowerUp 3600 supports fridges, lighting, and medical devices with certified safe power. Built for reliability in the most demanding conditions.
Remote Agriculture
Run pumps, fencing, and monitoring gear where the grid doesn’t go. With solar compatibility and stackable batteries, it’s the off-grid power solution Aussie farmers can trust.
Any Other Remote Power Needs
Whether you’re off-grid, on the road, or responding to a crisis — PowerUp 3600 delivers powerful, portable energy where the grid can’t reach. If you can carry it, you can power it.
*Note that you will require extra batteries according to your usage. Calculate your usage and then choose number of batteries.
Multiple Ways to Charge Your PowerUp 3600
-
Wall outlet (AC): 80% in 60 mins, 0–100% in 1h 45m
-
Solar panels: 200W = 17h, 400W = 8h, 800W = 4h (in good sun)
-
12V Car (Anderson): Up to 30A, ~7.5h full charge
-
Dual AC + Solar: Prioritises solar then AC; min charge time = 1.5h
Specifications
|
Item
|
Specification
|
|
MODEL / SKU
|
AT-PORT-POWERUP-BATT-3072WH
|
|
WEIGHT (KG)
|
29kg
|
|
RATED CAPACITY
|
3072Wh (51.2V) / 60Ah
|
|
CELL LAYOUT
|
16S3P
|
|
VOLTAGE
|
51.2V
|
|
BATTERY CELL
|
40138 / LiFePO4 40138
|
|
CHARGING TEMPERATURE
|
0 – 45°C
|
|
DISCHARGING TEMPERATURE
|
-20 – 60°C
|
|
STORAGE TEMPERATURE
|
-10 – 45°C
|
|
WORKING HUMIDITY
|
20% – 90% (No Condensation at this level)
|
|
STANDBY TIME
|
3 Months (Recharge every 3 months)
|

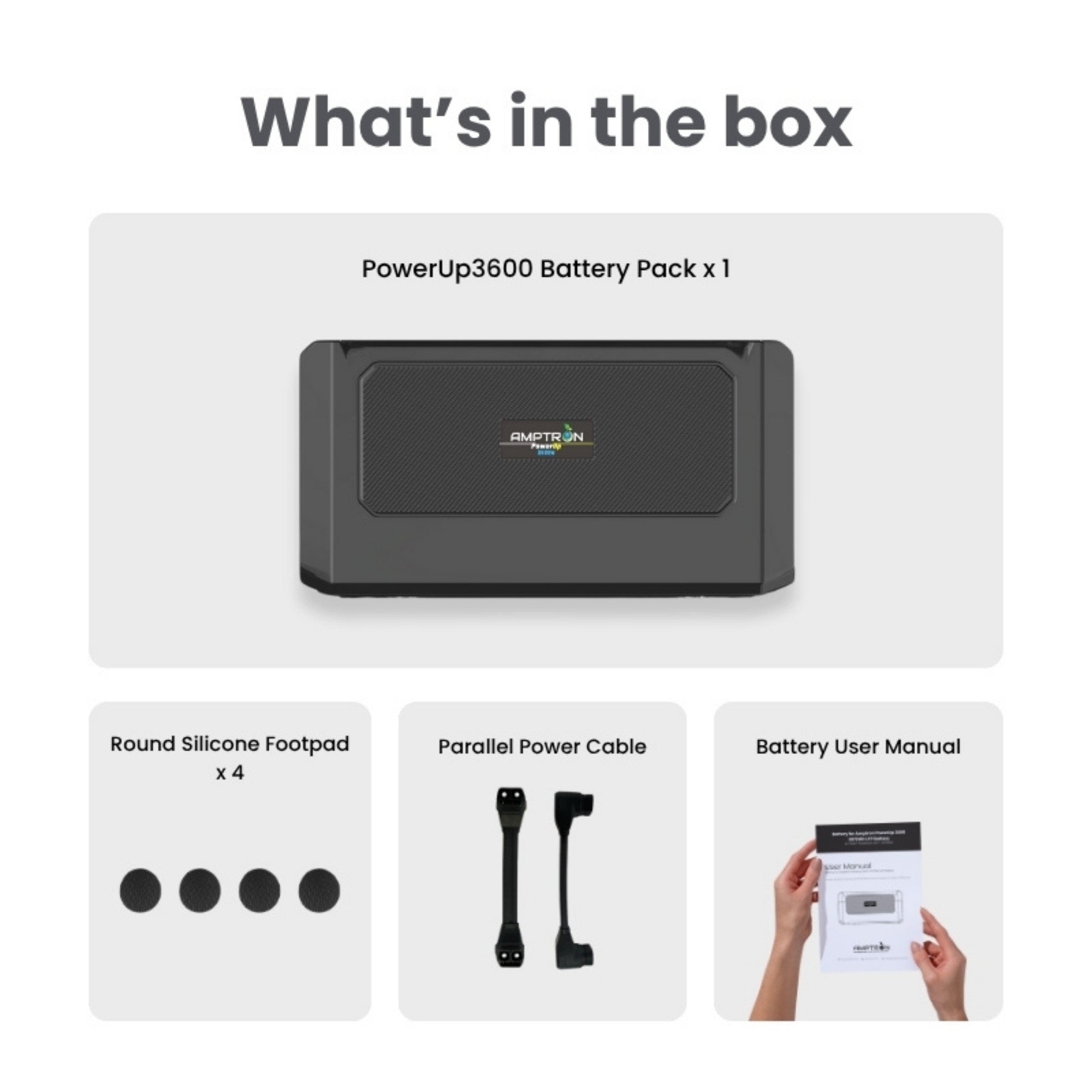

IN THE BOX
- 1 x 3072Wh Battery Unit
- 1 x PowerUp Battery User Manual
- 1 x Parallel Power Cable
- 4 x Rounded silicone footpad
