Solar Panel Light Weight Sunman eArc (175W)
Construction - Frameless
Dimensions - 1505 x 655 x 2mm
Weight - 3.3kg
75% LIGHTER - 85% THINNER
Only flexible panels approve by the Aust Clean Energy Council
eArc from Sunman is a light weight and ultra-thin solar panel made with a fibreglass reinforced composite material similar to aircraft windows, and 75% lighter than conventional solar panels, making it far less costly to transport and install. eArc light weight solar panels are ideal for caravans, motorhomes, RV’s, Buses, 4WDs, boats, yachts and even trains. Yes trains, in fact the eArc panels are used on the world’s first solar powered train in Byron Bay, NSW.
USE CASES
Ultra-light - eArc weighs around 75% less than conventional PV panels. Panels measure just 2mm with a 100watt panel weighing just 1.9kgs.
eArc solar panels are also the first light weight solar panel approved for off grid use by the Clean Energy Council of Australia, meeting the same durability tests that conventional glass solar panels must (IEC61215:2016) as inuse on many home and commercial applications in Australia including the Sydney Maritime Museum Heritage Building.

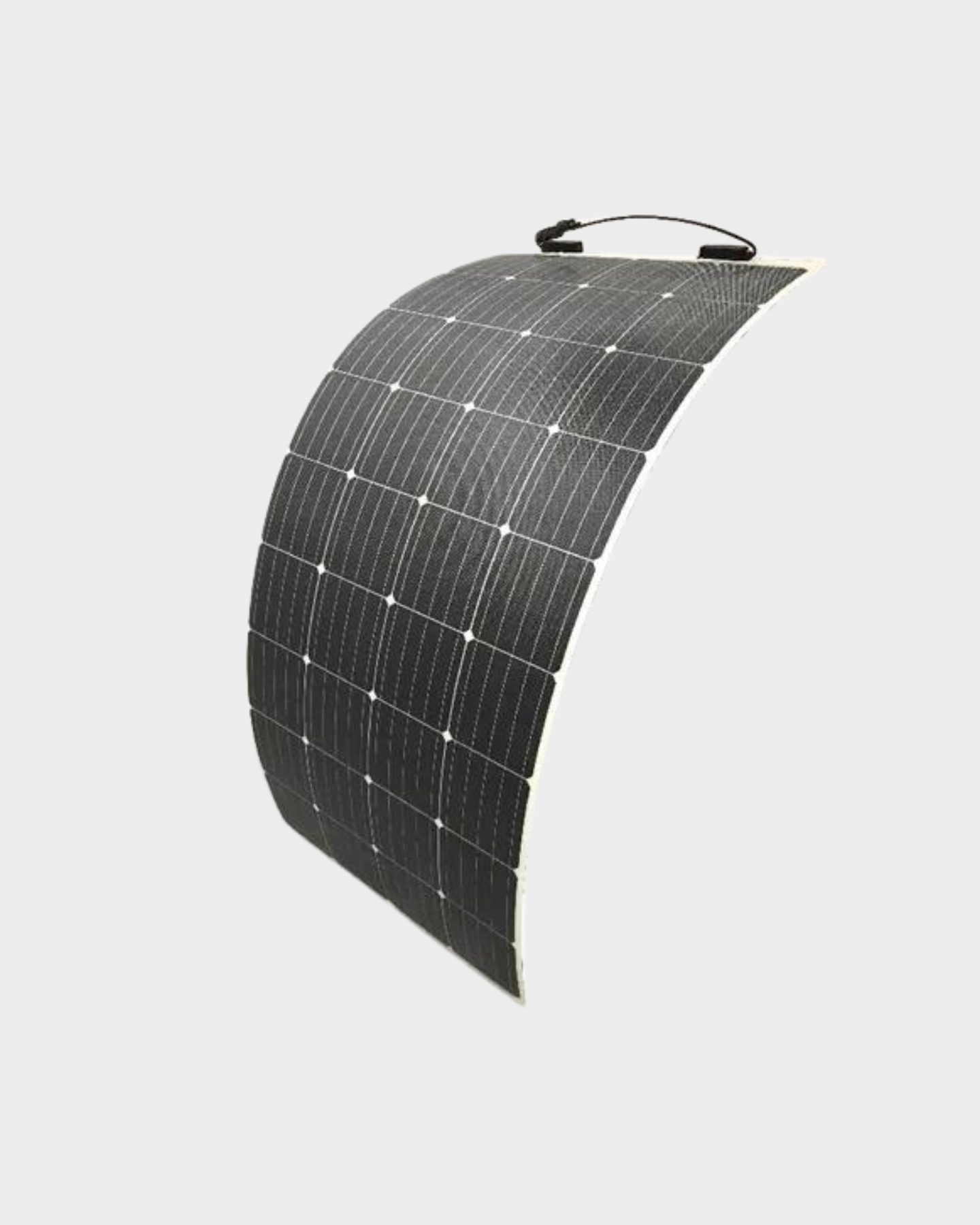

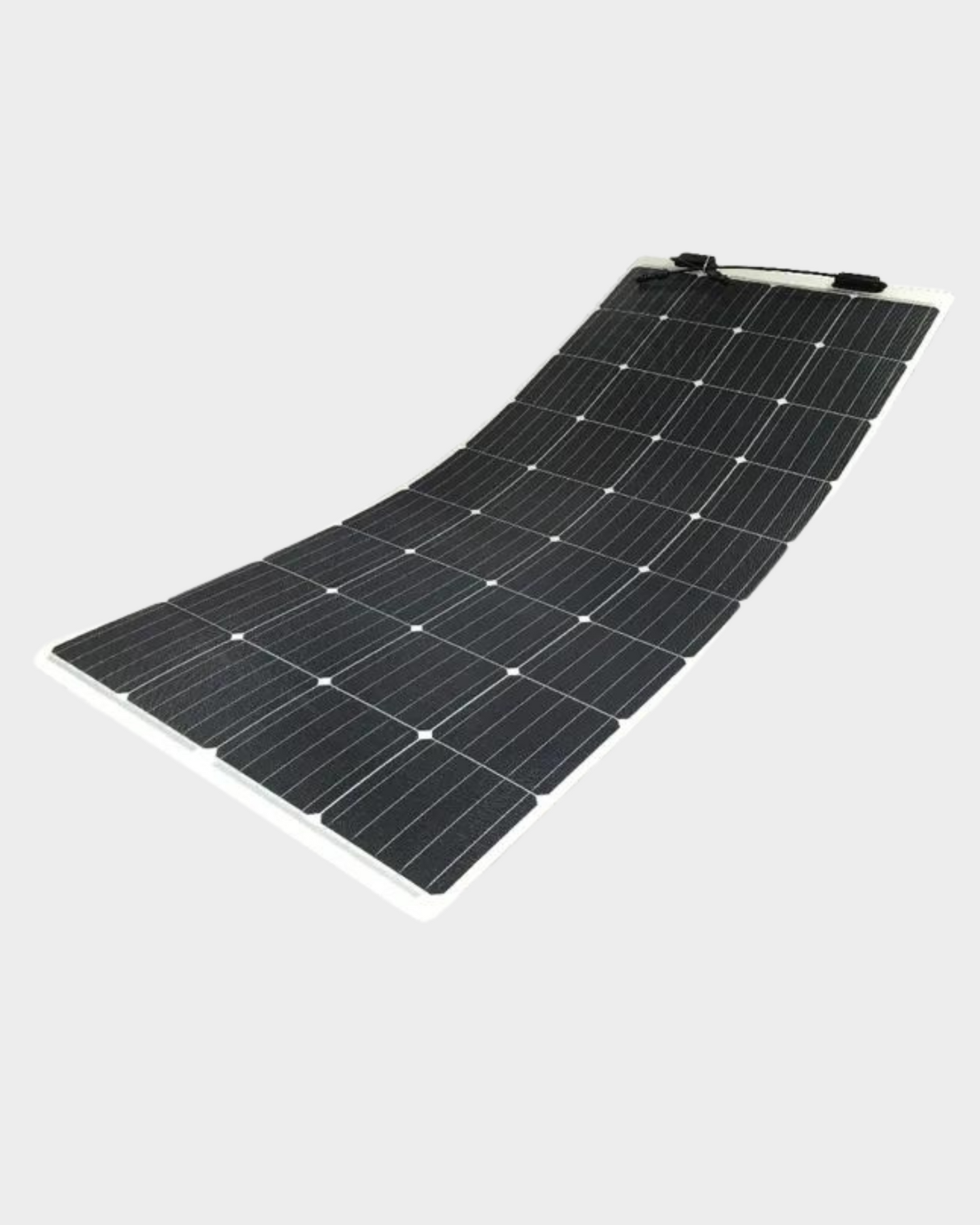

Flexible - eArc combines a unique, patented material to produce a superior flexible crystalline-silicon/panel which can be installed on curved surfaces.
Easy Installation - eArc can reduce installation cost through ease of handling and faster installation, without the added cost of mounting hardware.
Durability - Sunman eArc panels are certified to withstand maximum test load (2400 Pascal) and hail tested with 200g/35mm diameter ice stones at 39.5m per second.
Warranty - 5 Year Warranty.
WHATS IN THE BOX?
- 1 x Sunman eArc Flexible Panel

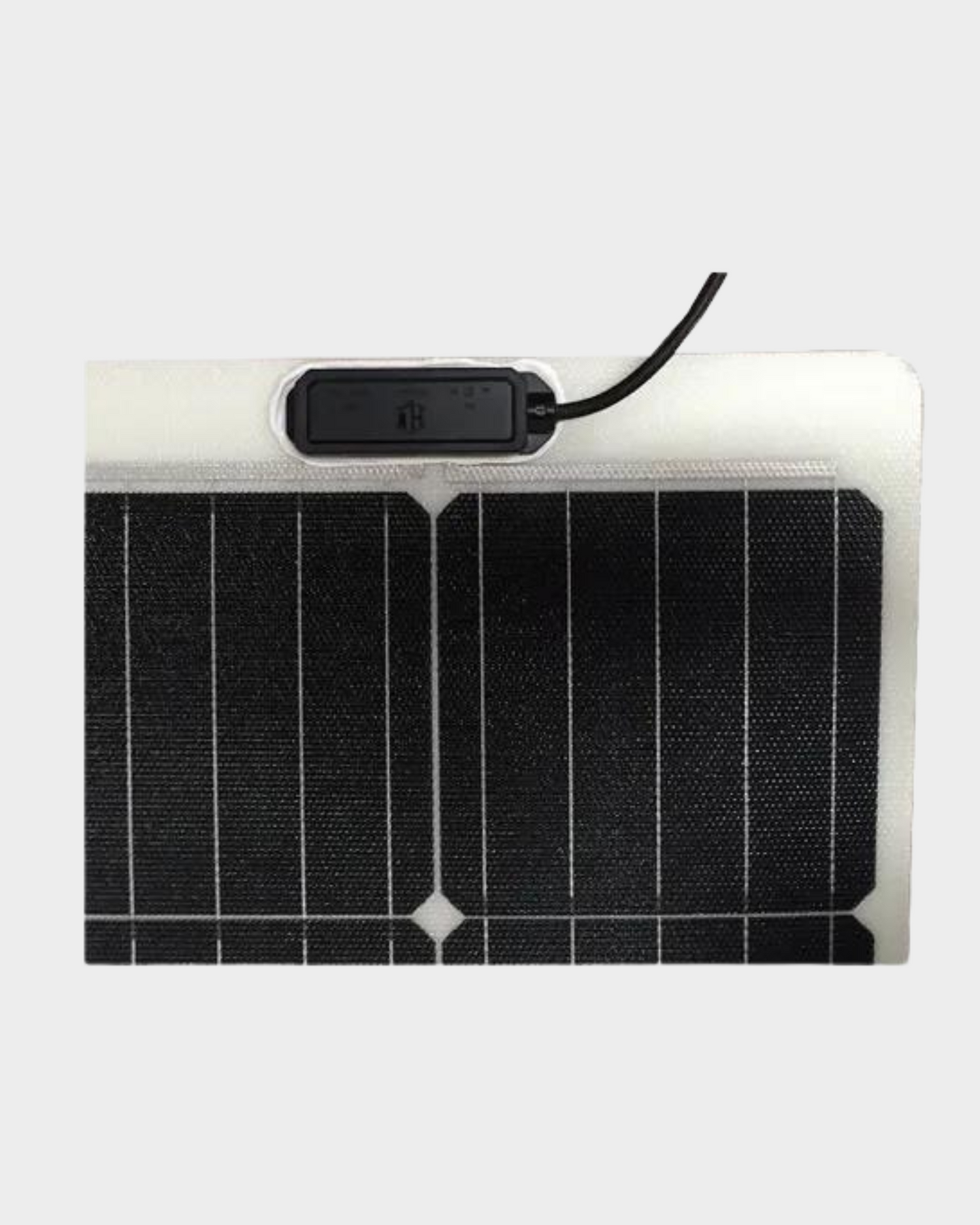

- 2 x MC4 output connectors
- 1 x MC4 to XT60 adapter (if option chosen)
Sunman 185W Electrical Specs:
- Maximum Power: 175W
- Open-Circuit Voltage: 19.5V
- Voltage at Pmax: 19.9
- Short Circuit Current: 9.78
- Current at Pmax (Imp): 9.3a
- Cell Efficiency: 17.1%
- Coating: EFTE
- Maximum System Voltage: 1000DC
- Operation Temperature: -10~60 degrees C
Installation Instructions
