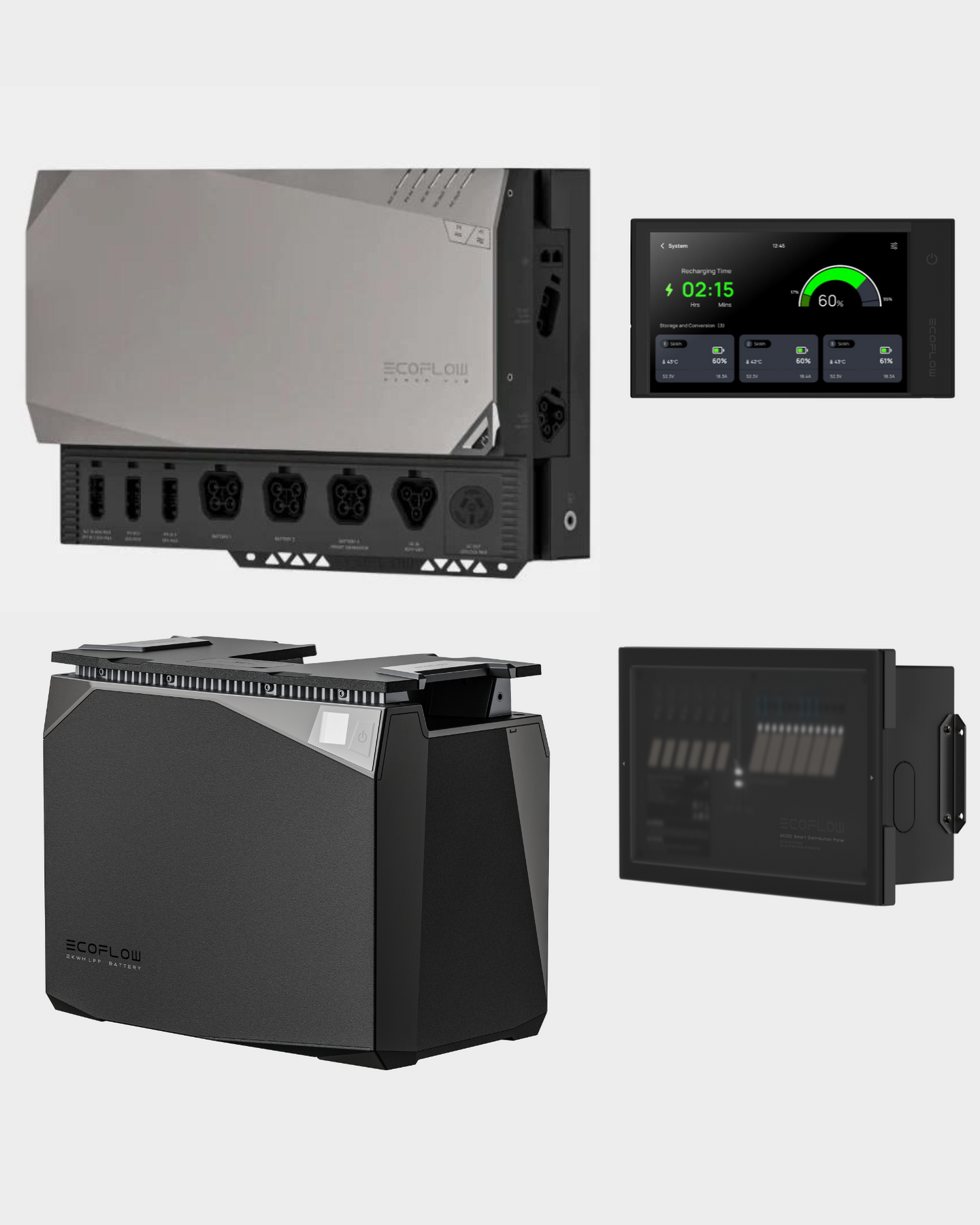

The Independence Kit provides a complete off-grid power solution. It features the essential components of the Power Hub and LFP Battery, with the addition of the EcoFlow AC/DC Smart Distribution Panel and Power Kit Console so you can monitor, control, and customize your power from the wall or mobile app.
Power Hub - Five Electronic Essentials in one.
We combined all the essential 48V components into one plug and play power box. With fewer wires and modules it's 5 times faster to set up, save masses of space, and your wallet too.
Power Hub has a 3600W AC output, and includes two MPPT solar charge controllers, a DC-DC battery charger with MPPT, an inverter charger, and a DC-DC step-down converter. Everything you need to power your tiny home or van.
LFP Batteries - Stack and store energy.
Available in two sizes, both 2 and 5kWh stack up to 3 for a capacity of up to 15kWh. Integrated BMS protects the batteries from operating beyond their capacity by monitoring temperature, voltage, and current, keeping your home and system safe. With built-in auto-heating, you can use the batteries safely in temperatures as low as -4°F.
AC/DC Distribution Panel - Take control.
With 12 fused DC positions, and 6 AC positions you can manage the power distribution around your RV or tiny home. Control up to 6 DC positions from the EcoFlow app or Console.
Console Monitor - Mount, modify, and monitor energy.
Conveniently mount the Power Kit Console to control your entire power system from the comfort of your RV or small home. Keep an eye on your energy usage, adjust settings and see your energy input all from the handy screen.
What's Included:
1 x Power hub
1 x Power Hub Alternator Charge Adapter
1 x Power Hub Solar Charge Cable (4.5 metre /20 feet
1 x Power Hub AC Charge Adapter (4.5m cable)
1 x Power Hub DC Main Adapter (4.5m cable)
1 x Power Hub AC Main Adapter (4.5m cable)
2 x Power Hub Mounting Kit
2 x RJ-45 Canbus Terminator
1 x 2KWh or 5kWh LFP Battery1 x LFP Battery Power Cable (1.5 metre / 5 feet)1 x 2KWh or 5kWh LFP Battery Wall Mounting Clamp 1 x AC/DC Smart Distribution Panel
1 x RJ45 CAN Bus Cable (6 metre / 20 feet)
1 x Distribution Panel Mounting Kit 1 Power Kits Monitor
Key Features - Power Hub
Inverter Charger
Bypass Mode - sends grid power directly to AC appliances
EPS - Automatically kicks in when grid power goes
X-Boost - Allows you to reach 5000W AC Output
X-Stream - Fast charge with 3000W AC input
Battery Charger with MPPT
Smart - Automatically recognizes alternator and PV charging, and recognizes when vehicle is idle to stop drawing current
Protective - Alternator charging adjusts the current, protecting the alternator and the starter battery.
MPPT Solar Charger Controller
Independent - Three independent MPPTs can use solar panels from different brands with different power.
Smart - An exceptional MPPT algorithm (fats MPPT tracking & optimal solar yield)
High Efficiency - Outstanding conversion efficiency
Protective - Extensive electronic protection.
Built-In Wifi & BlueTooth
Use your phone to connect with the Power Hub via Bluetooth to configure your home Wi-Fi. Control your entire system using your Wi-Fi connection.
AC Outlet
Power Hub contains one easy to use, plug and play AC Outlet with 2400W Output.

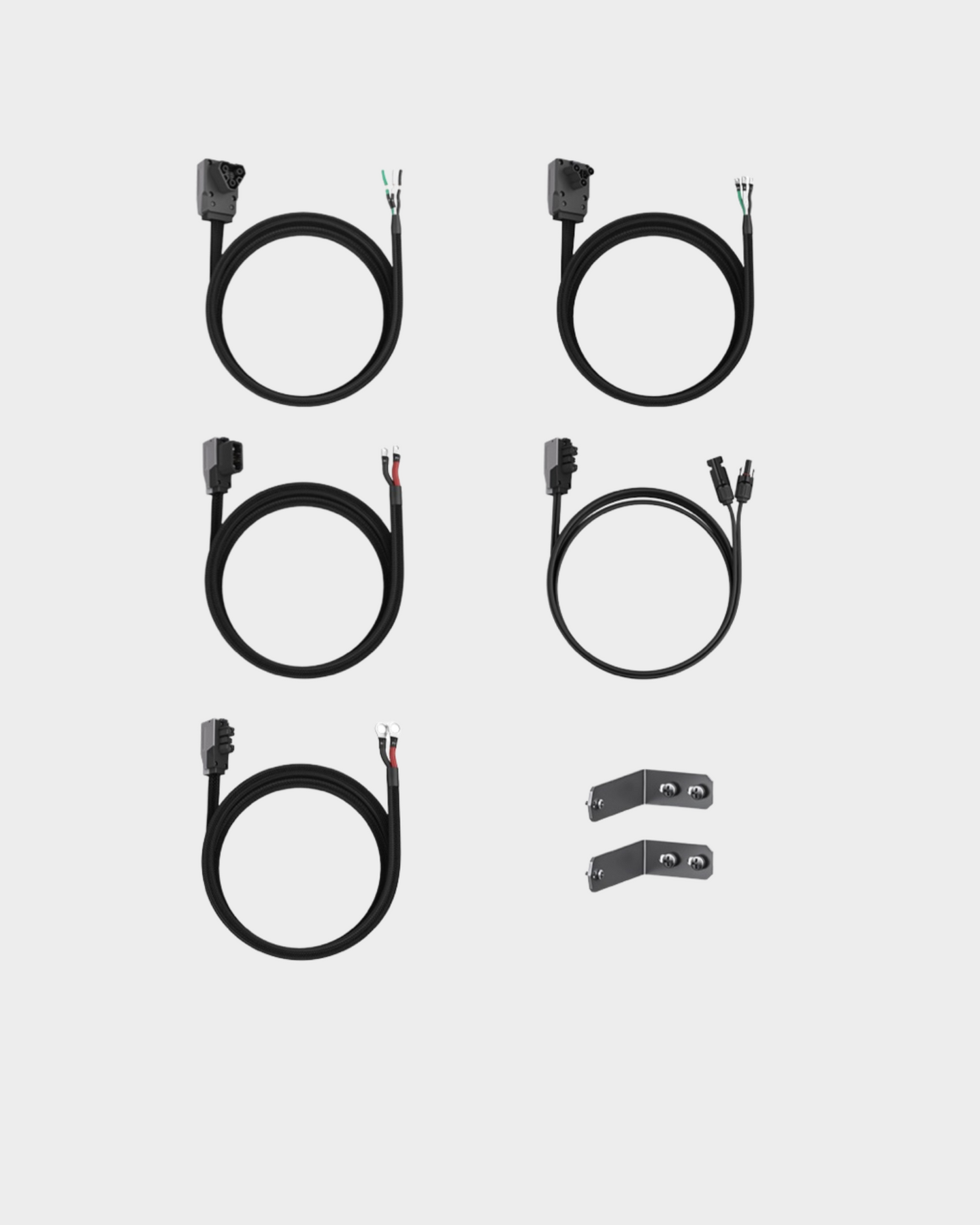

Cable Pack
Each Power Kit includes a pack of five space-saving cables that reach lengths of 15ft and 20ft, allowing you to conveniently place your batteries and power sources wherever you want. The package consists of cables for AC Charging, Alternator Charging, and Solar Charging, as well as Main Out Cables for AC and DC. Each directly plugs into the Power Hub without the need for additional accessories.
Key Features - LFP Battery
Heated Batteries
Our LFP batteries are auto-heating so you can even use them in cold climates without affecting their lifespan. Alternatively, manually start heating from the EcoFlow App while your battery discharges. Battery heating will automatically stop when it achieves the optimal temperature.
Advanced Battery Management System
Designed with durability in mind, these batteries are built to last years of heavy duty use. We put safety first, too. Our advanced battery management system regulates voltage, current and temperature in real time to ensure safe and optimal performance.
Simple Parallel Connecting
Connect up to three EcoFlow LFP Batteries to the Power Hub at once. Our specifically designed Battery Power Cable allows paralleled batteries to communicate with each other, maintaining safety and performance.
Multiple Mounting Options
The mountins options have designed to be both secure and space saving. Batteries can be stacked vertically, or horizontally using mounting straps, brackets or clamps provided.
Key Features - Distribution Panel
Safe and reliable power control.
With a simply-wired plug and clear LED indicators, the Smart Distribution Panel offers an easy setup and makes adjusting power distribution more manageable than ever.
Key Features - Monitor
Customize
Adjust 12/24 DC output voltage, AC input frequency and current, charging and discharging levels.
Monitor
Monitor DC output and real-time battery charging data, including charging time.
Stay Up to Date
Update firmware to keep your system protected and improve functionality.
ECOFLOW POWER HUB
Net Weight |
31lbs |
Dimensions |
30cm x 48cm 14cm (Height x Width x Depth) |
Testing & Certifications |
CE, UL, FCC |
Wi-Fi |
Supported |
Bluetooth |
Supported |
OUTPUT |
AC Main Output / Frequency |
Pure Sine Wave, 3600W (surge 6000W), 230V~, 50Hz/60Hz |
DC Main Output |
13.6V/70A 1000W Max; 26.4V/60A, 1500W Max |
INPUT |
AC Main Input |
X-Stream Fast Charging 3000W Max, 16A Max |
AC Main Input Voltage/frequency |
220-240V, 50Hz/60Hz |
Solar Charging Input |
15-150V 30A, 1600W Max |
Alternator Charging Input |
13V-60V, 60A, 1000W Max |
TEMPERATURE |
Best Operating Temperature |
20°C - 30°C |
Discharge Temperature |
-25°C - 60°C |
Charge Temperature |
-25°C - 60°C |
Storage Temperature |
-25°C - 60°C |
2KWH LFP BATTERY
Capacity |
2048Wh (51.2V, 40Ah) |
Cell Chemistry |
Lithium Iron Phosphate |
Cycle Life |
~3000 Cycles up to 80% Capacity |
Operating Temperature |
-20°C - 60°C |
Dimension |
28.4 x 34.8 x 19.8cm (Height x Width x Depth) |
Net Weight |
16.8kg |
Protection Level |
IP54 |
Tests & Certifications |
CE, UL, FCC, IC, UN38.3, EMC Class B |
5KWH LFP BATTERY
Capacity |
5120Wh (51.2V, 100Ah) |
Cell Chemistry |
Lithium Iron Phosphate |
Cycle Life |
~3500 Cycles up to 80% Capacity |
Operating Temperature |
-20°C - 60°C |
Dimension |
30 x 50 x 26cm (Height x Width x Depth) |
Net Weight |
41kg |
Protection Level |
IP54 |
Tests & Certifications |
CE, UL, FCC, IC, UN38.3, EMC Class B |
AC/DC SMART DISTRIBUTION PANEL
AC Main Input |
16A Max, 230V, 3600W |
DC Main Input |
70A Max |
AC Output |
6 AC Positions, 10A Max Each |
DC Output |
12 Fused DC Positions (6 Positions controllable via Power Kit Console & APP) |
Operating Temperature |
-25°C - 60°C |
Dimensions |
21 x 35.4 x 9.8cm (Height x Width x Depth) |
Net Weight |
2.6kg |
Protection Level |
IP21 |
Tests and Certifications |
CE, UL, FCC, EMC Class B |
POWER KIT CONSOLE
Touch Screen (Diagonal Measurement) |
7 Inch (154.21x85.92mm) (Width x Height) |
Power Supply Voltage |
12 VDC |
Operating Temperature |
-25°C - 60°C |
Dimensions |
113.3 x 204.5 x 22.35mm (Height x Width x Depth) |
Net Weight |
450g |
Tests and Certifications |
CE, UL, FCC, EMC Class B |
Warranty Statement
