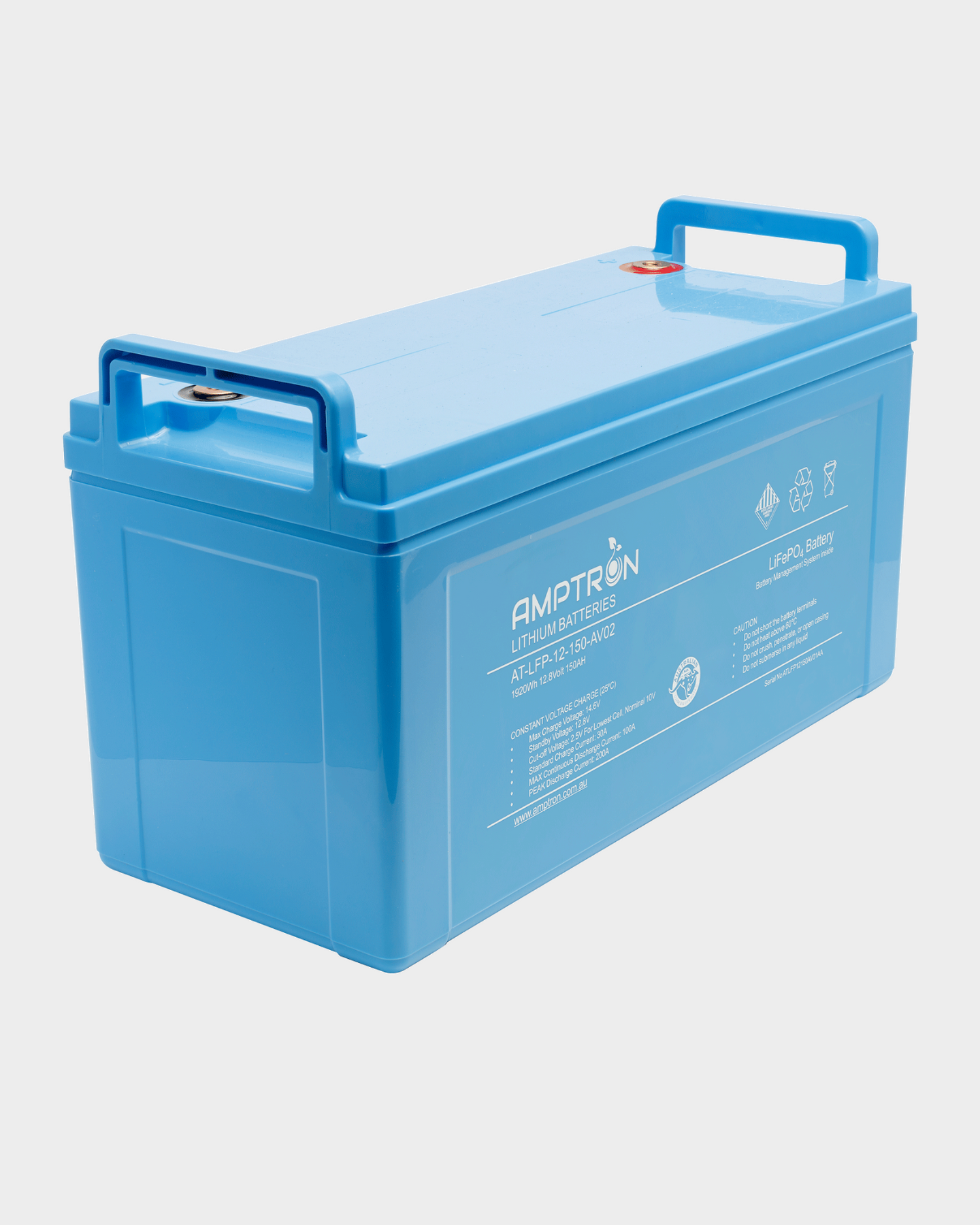

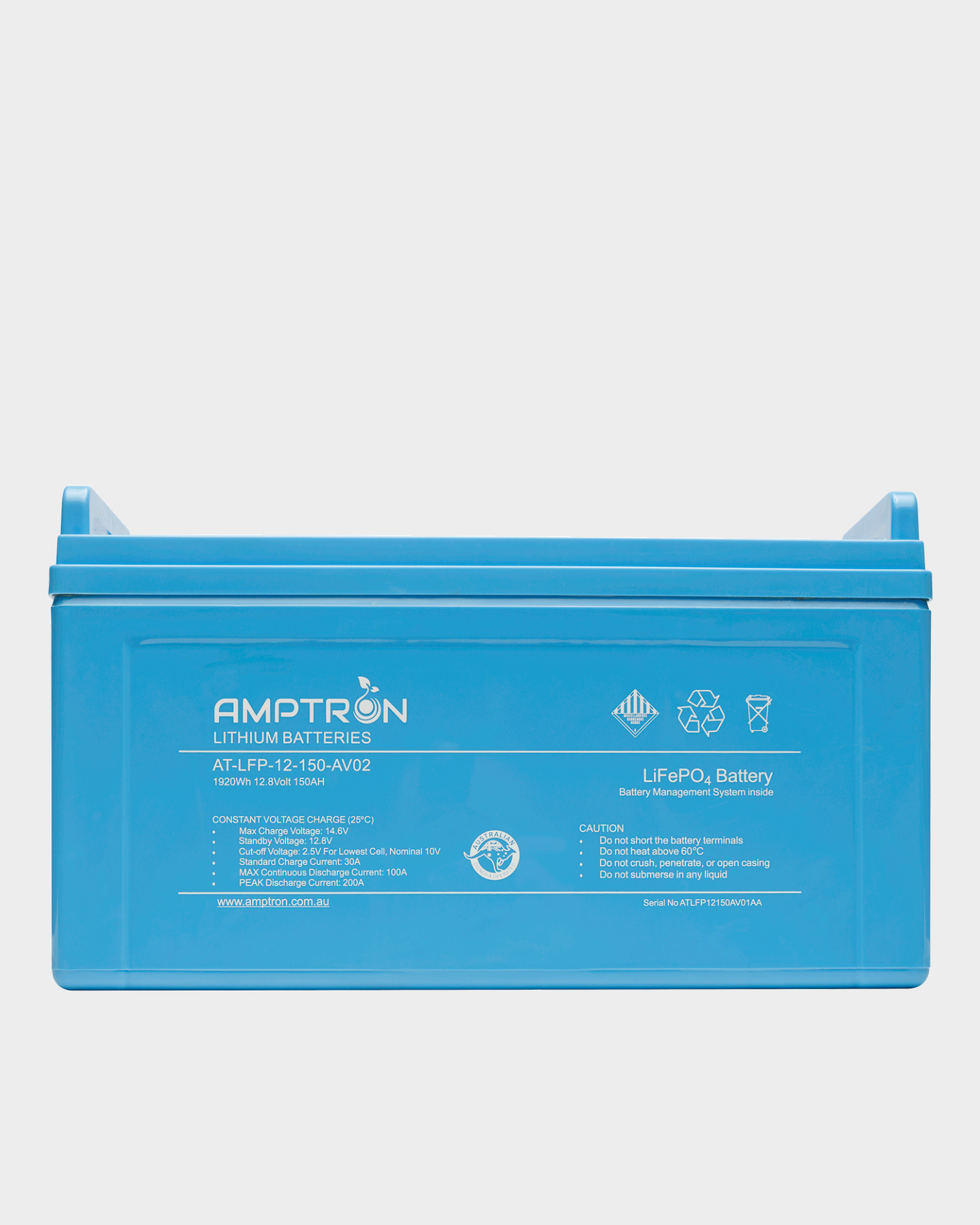

Amptron 12V 150Ah / 100A LiFePO4 Battery
Clean Portable Power is happy to supply Amptron batteries to Sydney and surrounds. These batteries are the perfect companions for our portable power solutions and solar / DC charging products.
AMPTRON® 12V 150Ah / 100A Lithium LiFePO4 Batteries are an alternative replacement (AR) for any application currently using a deep cycle Gel, AGM or Flooded Lead Acid battery.
The maximum continuous discharge current is 100A and peak discharge current 200A for 10 seconds.
AMPTRON® batteries come with a 4 year warranty and are designed using only the highest quality components. This includes the use of a robust Battery Protection System (BPS), aluminium encased prismatic cells, solid busbar connectors and a solid frame to reduce movement and damaging vibrations. AMPTRON® batteries can also be placed on its sides without the risk of components coming loose or loss of usable capacity.
Our Lithium batteries use a high quality robust integrated Battery Protection System (BPS) and is designed to manage and control all the battery protection requirements. The BPS maximisers the performance of the battery by automatically balancing the cells and protecting them from being over charged or over discharged. Our integrated BPS design is what allows our batteries to be used as an AR "Alternative Replacement" for many applications requiring durable, high quality, dependable and lightweight Lithium Batteries.
MANUFACTURER'S LIMITED WARRANTY:
AMPTRON® warrants each AMPTRON® branded battery sold by AMPTRON® or any of its authorized dealers or distributors worldwide, to be free of defects from the date of sale for 4 years. The warranty period starts at the time of purchase. If the original receipt is lost, the warranty will be based on the battery date code. The warranty covers failure due to defects in material or workmanship. Subject to the issues listed below, AMPTRON® will repair or replace the battery and/or parts of the battery if the components in question are defective in materials or workmanship.
Heavy Duty - Built In Battery Protection System
AMPTRON® lithium batteries have a built-in Battery Protection System (BPS) designed to prevent damage to the cells from almost any external accidental occurrence that would normally cause damage. The internal BPS will automatically disconnect to prevent damage to the cells if the battery drains below 10 volts. It will automatically reconnect when the charger is turned on. This protects the battery from over-discharging and damaging the cells. This technology also protects the battery from overcharge, short circuit and reverse polarity.
Internal Features:
- Low Voltage Protection Switch - Automatically disconnects around 10V
- Over Voltage Protection Switch - Automatically disconnects around 14.8V
- Short Circuit Protection Switch - Automatically disconnects
- Reverse Polarity Protection Switch - Automatically disconnects
- Internal cell balancing - Automatically balances cells
- Charge Balancing - Independent balancing for multiple batteries connected in parallel or in series.
- This Battery Protection System is designed to last throughout the life of the battery and provide reliable power for thousands of cycles.
CELL BALANCING
The BMS balances the cells by sending more current through the length way circuit boards and into cells with a lower voltage. The BMS will also discharge cells that exceed 3.65V during charging.
THERMAL FUSE
Internal Cell Safety Fuse
Our latest cell technology is manufactured with a internal thermal safety fuse between the anode and cathode that will break and disconnect in the unlikely event the cell would begin to overheat.
SAFETY VENT
High pressure safety vent
Each cell has a high pressure safety vent that will flip open to release energy and prevent explosion.
ELECTROLYTE
Flame Retardant Electrolyte
Our cells are manufactured with our patented flame retardant additive in our electrolyte.
EXPLOSION PROOF
Explosion proof Nickel plated steel
Every AMPTRON® cell is manufactured in our explosion proof Nickel plated steel Prismatic case.
WHATS IN THE BOX?
|
Item
|
Specification
|
Description/Remark
|
|
Model
|
AT-LFP-12-150-AV02
|
12V 150Ah Lithium LiFePO4 battery
|
|
Chemistry
|
Lithium Iron Phosphate (LiFePO4)
|
|
|
Battery dimensions
|
L-405mm x W-175mm x H-220mm
|
Height to top of fixed Handel 240mm
|
|
Weight
|
19kg
|
|
|
Cell type
|
3.2V 75Ah
|
Prismatic
|
|
Battery module
|
8 pcs 3.2V 75Ah cells, 2 parallel & 4 serial
|
|
|
Casing material for single cell
|
Nickel plated steel
|
|
|
Standard capacity（0.2C5A）
|
150 Ah / 1920Wh
|
|
|
> 2000 cycles at 100% Depth of Discharge (DoD)
|
Cycle life
|
Under normal usage where the DOD is <80%, cycle life is expected to be up to 5000 cycles
|
|
Rated voltage
|
12.8V
|
Working voltage per cell: 3.2V
|
|
Charge voltage
|
14.6V
|
Max. charge voltage per cell: 3.65V
|
|
Cut-off volate
|
10V
|
Discharge voltage per cell: 2.50V
|
|
Depth of discharge (DoD)
|
100%
|
Batteries can be discharged to 100% of the rated capacity
|
|
Standard charge current
|
30A
|
0.2C
|
|
Charging time
|
Approximately 5 hours
|
When charging from low voltage cut-off point
|
|
Optimum charge current range
|
30A (0.2C) to 75A (0.5C)
|
Cell max voltage < 3.9V
|
|
Rapid charging
|
Max. charge current 100A (0.67C3A)
|
Temperature increase falling within 15°C is normal. Over 15°C will affect the service life of the cells.
|
|
Max continuous discharge current
|
100A
|
1C, cell min voltage> 2.0v
|
|
Peak discharge current
|
200A
|
2C (5 seconds)
|
|
Discharge performance in normal temperature
|
20A (0.2C3A) ≥ 100%
1C3A ≥90％ |
|
|
Operating temperatures
|
Standard 0℃～45℃
Discharge -20℃～65℃ Storage -20℃～45℃ |
|
|
Impedance (Max, at 1000Hz.)
|
≤ 45mΩ
|
|
|
Storage performance
|
Capacity can be kept ≥ 80% in storage for 12months
|
Battery should be kept at -20℃ ～ 45℃ where it’s dry, clean and well-ventilated.
|
|
Connecting Terminals Pos (+) & Neg (-)
|
M8
|
|
Warning
DO NOT use electric devices with bare metal when charging to avoid the risk of electric shock.
