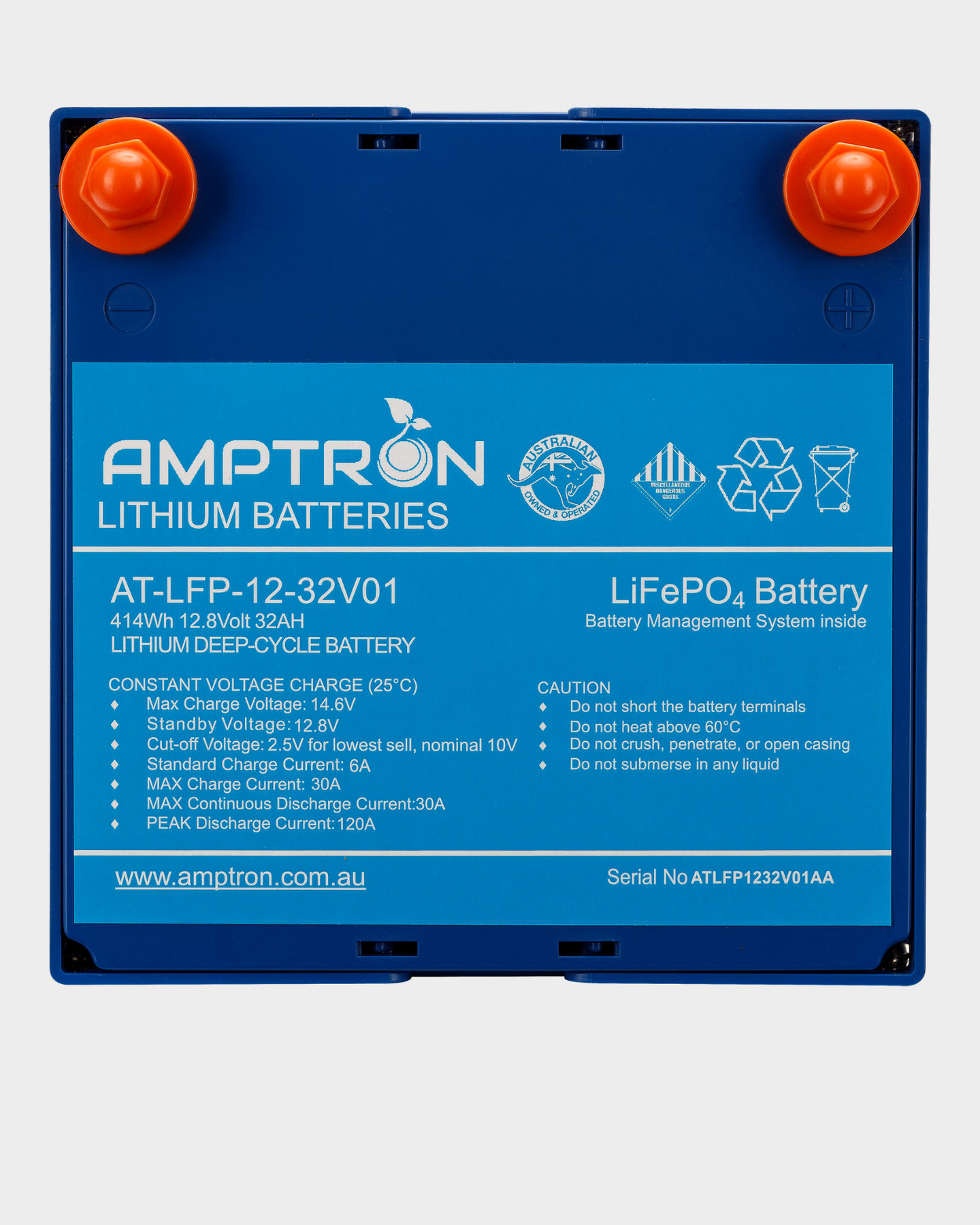

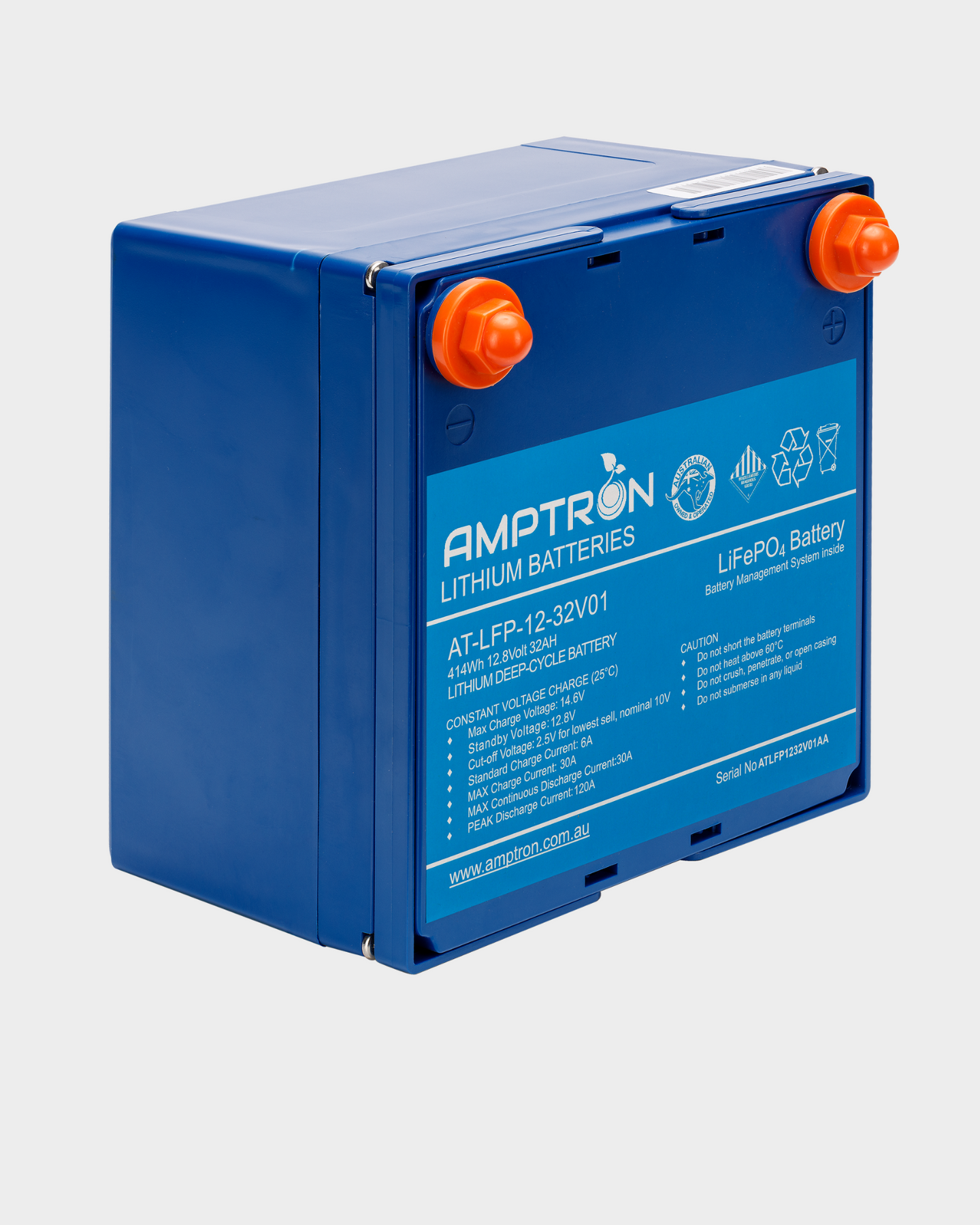

Amptron 12V 32Ah LiFePO4 Battery w/ Mini Anderson Connector
Clean Portable Power is happy to supply Amptron batteries to Sydney and surrounds. These batteries are the perfect companions for our portable power solutions and solar / DC charging products.
AMPTRON® 12V 32Ah Lithium LiFePO4 Batteries are an alternative replacement (AR) for any application currently using a deep cycle Gel, AGM or Flooded Lead Acid battery.
The maximum continuous discharge current is 30A.
This Combo kit includes a 6A LiFePO4 battery charger. The 6A 12V model charger operates from mains AC 200-240V as input, supplying charging output suitable for nominal 12V LiFePO4 batteries.
AMPTRON® batteries come with a 4 year warranty and are designed using only the highest quality components. This includes the use of a robust Battery Protection System (BPS), aluminium encased prismatic cells, solid busbar connectors and a solid frame to reduce movement and damaging vibrations. AMPTRON® batteries can also be placed on its sides without the risk of components coming loose or loss of usable capacity.
Our Lithium batteries use a high quality robust integrated Battery Protection System (BPS) and is designed to manage and control all the battery protection requirements. The BPS maximisers the performance of the battery by automatically balancing the cells and protecting them from being over charged or over discharged. Our integrated BPS design is what allows our batteries to be used as an AR "Alternative Replacement" for many applications requiring durable, high quality, dependable and lightweight Lithium Batteries.
MANUFACTURER'S LIMITED WARRANTY:
AMPTRON® warrants each AMPTRON® branded battery sold by AMPTRON® or any of its authorized dealers or distributors worldwide, to be free of defects from the date of sale for 4 years. The warranty period starts at the time of purchase. If the original receipt is lost, the warranty will be based on the battery date code. The warranty covers failure due to defects in material or workmanship. Subject to the issues listed below, AMPTRON® will repair or replace the battery and/or parts of the battery if the components in question are defective in materials or workmanship.
Heavy Duty - Built In Battery Protection System
AMPTRON® lithium batteries have a built-in Battery Protection System (BPS) designed to prevent damage to the cells from almost any external accidental occurrence that would normally cause damage. The internal BPS will automatically disconnect to prevent damage to the cells if the battery drains below 10 volts. It will automatically reconnect when the charger is turned on. This protects the battery from over-discharging and damaging the cells. This technology also protects the battery from overcharge, short circuit and reverse polarity.
Internal Features:
- Low Voltage Protection Switch - Automatically disconnects around 10V
- Over Voltage Protection Switch - Automatically disconnects around 14.8V
- Short Circuit Protection Switch - Automatically disconnects
- Reverse Polarity Protection Switch - Automatically disconnects
- Internal cell balancing - Automatically balances cells
- Charge Balancing - Independent balancing for multiple batteries connected in parallel or in series.
- This Battery Protection System is designed to last throughout the life of the battery and provide reliable power for thousands of cycles.
CELL BALANCING
The BMS balances the cells by sending more current through the length way circuit boards and into cells with a lower voltage. The BMS will also discharge cells that exceed 3.65V during charging.
THERMAL FUSE
Internal Cell Safety Fuse
Our latest cell technology is manufactured with a internal thermal safety fuse between the anode and cathode that will break and disconnect in the unlikely event the cell would begin to overheat.
SAFETY VENT
High pressure safety vent
Each cell has a high pressure safety vent that will flip open to release energy and prevent explosion.
ELECTROLYTE
Flame Retardant Electrolyte
Our cells are manufactured with our patented flame retardant additive in our electrolyte.
EXPLOSION PROOF
Explosion proof Nickel plated steel
Every AMPTRON® cell is manufactured in our explosion proof Nickel plated steel Prismatic case.
WHATS IN THE BOX?
|
Item
|
Specification
|
Description/Remark
|
|
Model
|
AT-LFP-12-AND32AV01
|
12V 32Ah Lithium LiFePO4 battery and battery charger Combo kit
|
|
Chemistry
|
Lithium Iron Phosphate (LiFePO4)
|
|
|
Battery dimensions
|
L-175mm x W-175mm x H-110mm
|
|
|
Weight
|
4.2kg
|
|
|
Standard capacity（0.2C6A）
|
32 Ah / 408Wh
|
|
|
> 2000 cycles at 100% Depth of Discharge (DoD)
|
Cycle life
|
Under normal usage where the DOD is <80%, cycle life is expected to be up to 5000 cycles
|
|
Rated voltage
|
12.8V
|
Working voltage per cell: 3.2V
|
|
Charge voltage
|
14.4 - 14.6V
|
Max. charge voltage per cell: 3.65V
|
|
Cut-off voltage
|
10V
|
Discharge voltage per cell: 2.50V
|
|
Depth of discharge (DoD)
|
100%
|
Batteries can be discharged to 100% of the rated capacity
|
|
Standard charge current
|
6A
|
0.2C
|
|
Charging time
|
Approximately 5 hours
|
When charging from low voltage cut-off point
|
|
Max continuous discharge current
|
30A
|
Maximum Instantaneous Current 120A 5ms
|
|
Operating temperatures
|
Standard 0℃～45℃
Discharge -20℃～60℃ Storage 0℃～40℃ |
Recommended long term storage temperature is 15℃～25℃
|
|
Storage performance
|
Capacity can be kept ≥ 80% in storage for 12 months
|
Battery should be kept at 0℃ ～ 40℃ where it’s dry, clean and well-ventilated.
|
|
Discharge output
|
M8 Bolt Terminal Connection
|
|
|
|
|
|
|
Charger
|
|
|
|
Model
|
AMPTRON C300
|
6A 14.4V LiFePO4 Battery Charger
|
|
Input Voltage
|
min 200Vac to max 240Vac 50Hz
|
|
|
Charging input
|
T-Anderson connectors Length：330±10 mm
|
|
Warning
DO NOT use electric devices with bare metal when charging to avoid the risk of electric shock.
