EcoFlow Power Kits - Get Set Kit
EcoFlow Power Kits - Get Set Kit
EcoFlow Power Kits - Get Set Kit
EcoFlow Power Kits - Get Set Kit

EcoFlow Power Kits - Get Set Kit

$8,890.00
/
- +
    delivery
Please Contact For Quote

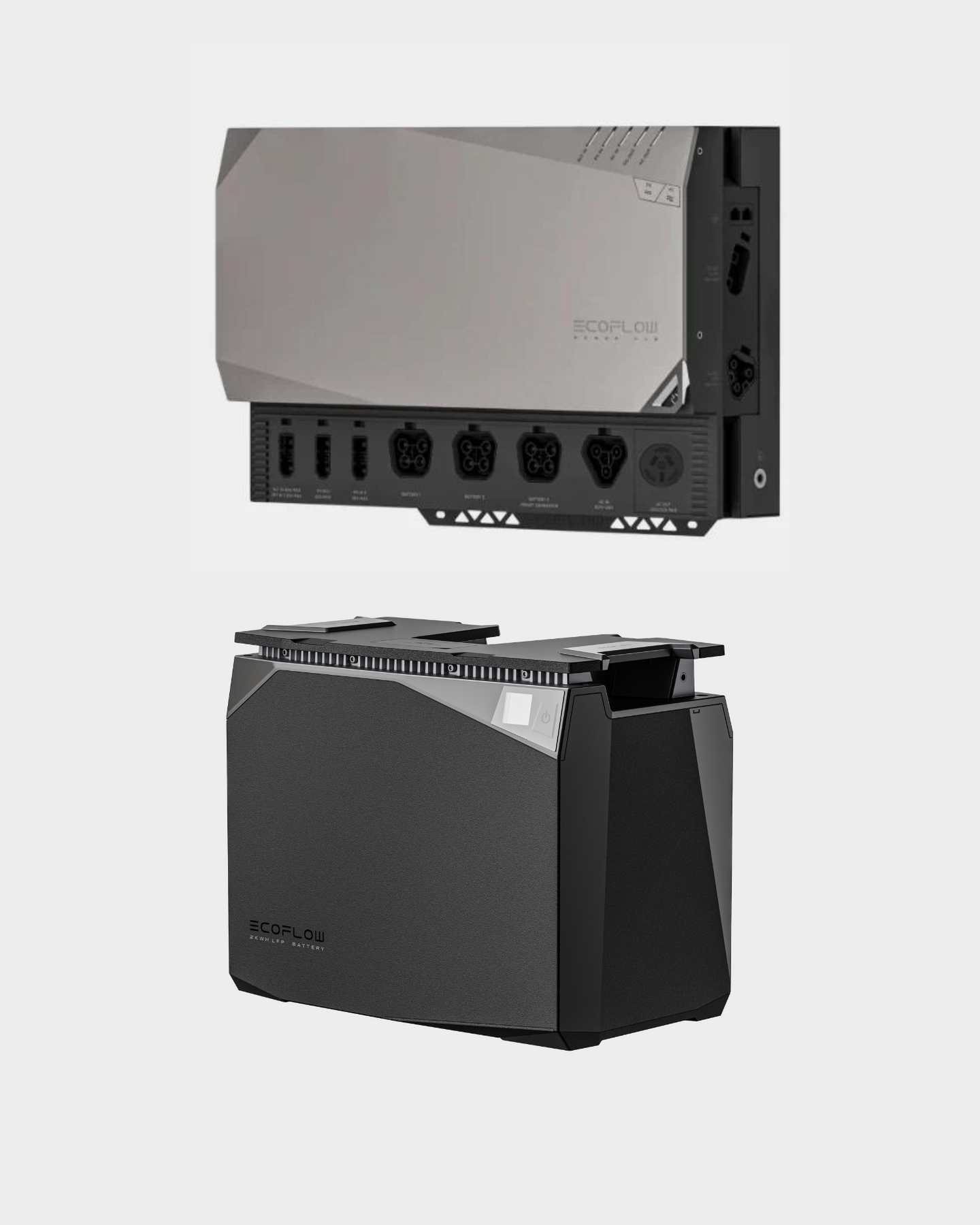

The Get Set Kit includes all the basic component to create a basic electrical system for your van/off-grid home; an LFP battery, Power Hub and all required cabling.

Power Hub  - Five Electronic Essentials in one.

We combined all the essential 48V components into one plug and play power box. With fewer wires and modules it's 5 times faster to set up, save masses of space, and your wallet too.The Power Hub has a 3600W AC output, and includes two MPPT solar charge controllers, a DC-DC battery charger with MPPT, an inverter charger, and a DC-DC step-down converter. Everything you need to power your tiny home or van.

LFP Batteries - Stack and store energy.

Available in two sizes, both 2 and 5kWh stack up to 3 for a capacity of up to 15kWh. Integrated BMS protects the batteries from operating beyond their capacity by monitoring temperature, voltage, and current, keeping your home and system safe. With built-in auto-heating, you can use the batteries safely in temperatures as low as -4°F.



What's Included:

1 x Power hub
1 x Power Hub Alternator Charge Adapter
1 x Power Hub Solar Charge Cable (4.5 metre /20 feet
1 x Power Hub AC Charge Adapter (4.5m cable)
1 x Power Hub DC Main Adapter (4.5m cable)
1 x Power Hub AC Main Adapter (4.5m cable)
2 x Power Hub Mounting Kit
2 x RJ-45 Canbus Terminator
1 x 2KWh or 5kWh LFP Battery
1 x LFP Battery Power Cable (1.5 metre / 5 feet)
1 x 2KWh or 5kWh LFP Battery Wall Mounting Clamp



Key Features - Power Hub

Inverter Charger

Bypass Mode - sends grid power directly to AC appliances
EPS - Automatically kicks in when grid power goes
X-Boost - Allows you to reach 5000W AC Output
X-Stream - Fast charge with 3000W AC input

Battery Charger with MPPT

Smart - Automatically recognizes alternator and PV charging, and recognizes when vehicle is idle to stop drawing current
Protective - Alternator charging adjusts the current, protecting the alternator and the starter battery.

MPPT Solar Charger Controller

Independent - Three independent MPPTs can use solar panels from different brands with different power.
Smart - An exceptional MPPT algorithm (fats MPPT tracking & optimal solar yield)
High Efficiency - Outstanding conversion efficiency
Protective - Extensive electronic protection.

Built-In Wifi & BlueTooth

Use your phone to connect with the Power Hub via Bluetooth to configure your home Wi-Fi. Control your entire system using your Wi-Fi connection.

AC Outlet

Power Hub contains one easy to use, plug and play AC Outlet with 2400W Output.

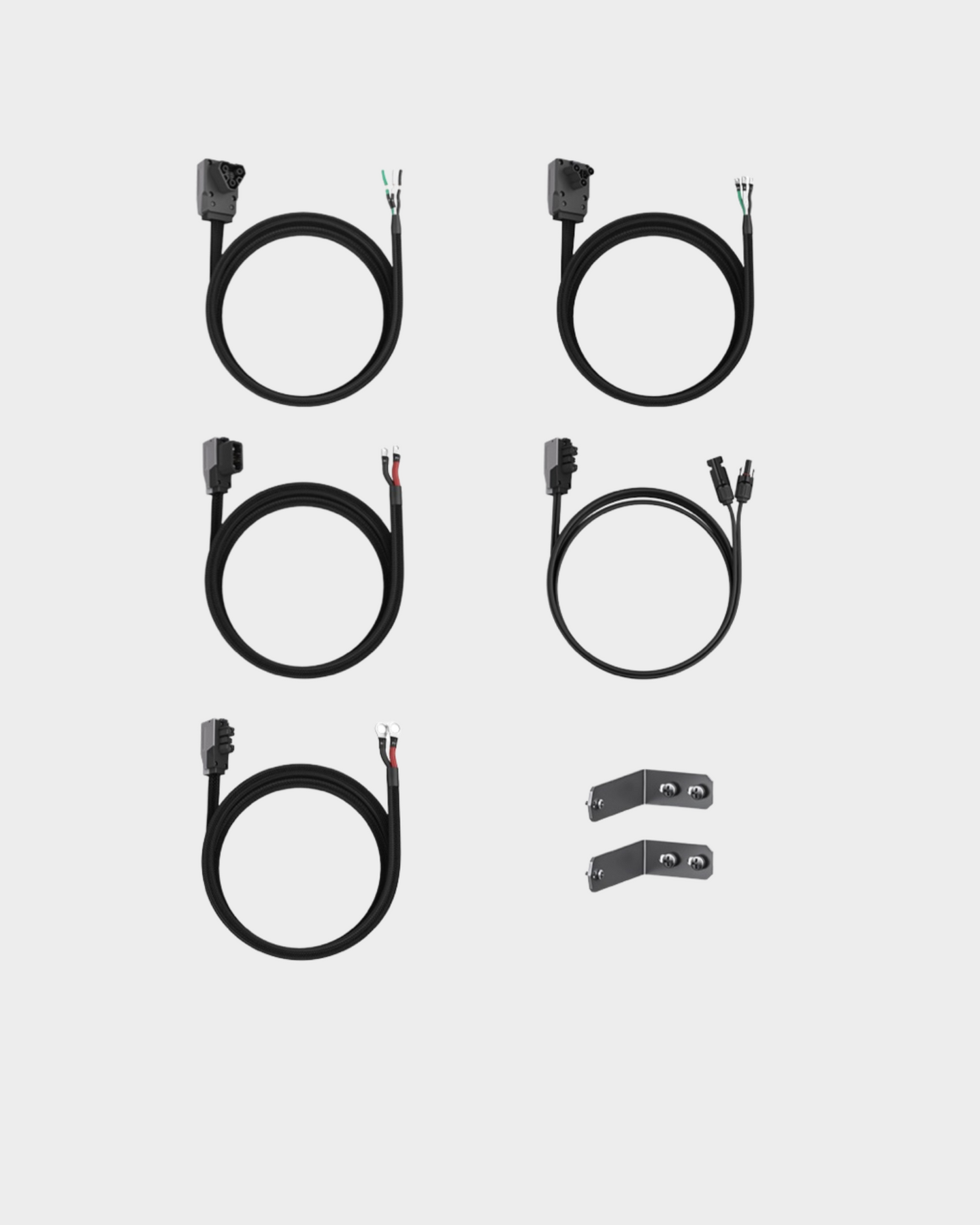

Cable Pack

Each Power Kit includes a pack of five space-saving cables that reach lengths of 15ft and 20ft, allowing you to conveniently place your batteries and power sources wherever you want. The package consists of cables for AC Charging, Alternator Charging, and Solar Charging, as well as Main Out Cables for AC and DC. Each directly plugs into the Power Hub without the need for additional accessories.

Key Features - LFP Battery

Heated Batteries

Our LFP batteries are auto-heating so you can even use them in cold climates without affecting their lifespan. Alternatively, manually start heating from the EcoFlow App while your battery discharges. Battery heating will automatically stop when it achieves the optimal temperature.

Advanced Battery Management System

Designed with durability in mind, these batteries are built to last years of heavy duty use. We put safety first, too. Our advanced battery management system regulates voltage, current and temperature in real time to ensure safe and optimal performance.

Simple Parallel Connecting

Connect up to three EcoFlow LFP Batteries to the Power Hub at once. Our specifically designed Battery Power Cable allows paralleled batteries to communicate with each other, maintaining safety and performance.

Multiple Mounting Options

The mountins options have designed to be both secure and space saving. Batteries can be stacked vertically, or horizontally using mounting straps, brackets or clamps provided.


    ECOFLOW POWER HUB

    Net Weight 31lbs
    Dimensions 30cm x 48cm 14cm (Height x Width x Depth)
    Testing & Certifications CE, UL, FCC
    Wi-Fi Supported
    Bluetooth Supported
    OUTPUT
    AC Main Output / Frequency Pure Sine Wave, 3600W (surge 6000W), 230V~, 50Hz/60Hz
    DC Main Output 13.6V/70A 1000W Max; 26.4V/60A, 1500W Max
    INPUT
    AC Main Input X-Stream Fast Charging 3000W Max, 16A Max
    AC Main Input Voltage/frequency 220-240V, 50Hz/60Hz
    Solar Charging Input 15-150V 30A, 1600W Max
    Alternator Charging Input 13V-60V, 60A, 1000W Max
    TEMPERATURE
    Best Operating Temperature 20°C - 30°C
    Discharge Temperature -25°C - 60°C
    Charge Temperature -25°C - 60°C
    Storage Temperature -25°C - 60°C

    2KWH LFP BATTERY

    Capacity 2048Wh (51.2V, 40Ah)
    Cell Chemistry Lithium Iron Phosphate
    Cycle Life ~3000 Cycles up to 80% Capacity
    Operating Temperature -20°C - 60°C
    Dimension 28.4 x 34.8 x 19.8cm (Height x Width x Depth)
    Net Weight 16.8kg
    Protection Level IP54
    Tests & Certifications CE, UL, FCC, IC, UN38.3, EMC Class B

    5KWH LFP BATTERY

    Capacity 5120Wh (51.2V, 100Ah)
    Cell Chemistry Lithium Iron Phosphate
    Cycle Life ~3500 Cycles up to 80% Capacity
    Operating Temperature -20°C - 60°C
    Dimension 30 x 50 x 26cm (Height x Width x Depth)
    Net Weight 41kg
    Protection Level IP54
    Tests & Certifications CE, UL, FCC, IC, UN38.3, EMC Class B
